Product Details:
|
Contrast Ratio: | 700 Cd/m² (Typ.) | Panel Size: | 18.1 Inch |
---|---|---|---|
Resolution: | 1280(LCR)×1024 , SXGA | Frequency: | 60Hz |
High Light: | industrial touch screen display,industrial lcd panel |
Products Information:
Panel Size : | 18.1 inch |
Dot Resolution : | 1280(LCR)×1024 (SXGA) |
Pixel Configuration : | LCR Vertical Stripe |
Pixel Density : | 90 PPI |
Aspect Ratio : | 5:4 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.0935×0.2805 mm (H×V) |
Pixel Pitch : | 0.2805×0.2805 mm (H×V) |
Weight : | 2.90Kgs (Typ.) |
Active Area : | 359.04×287.232 mm (H×V) |
Bezel Area : | 367.0×295.2 mm (H×V) |
Outline Dimension : | 389×317.2 mm (H×V) |
Outline Depth : | 35.0 (Max.) mm |
Holes & Brackets : | Side mounting holes (10-M3) |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : |
| |
Brightness : | 700 cd/m² (Typ.) | |
Contrast Ratio : | 550 : 1 (Typ.) (Transmissive) | |
Display Color : | Grayscale (8-bit) | |
Response Time : | 40 (Typ.)(Tr+Td) | |
Viewing Angle : | 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) | |
Viewing Direction : | Symmetry | |
White color Chromaticity : | Wx:0.299; Wy:0.305 | |
Sunlight Readable : | N |
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
ED060KG1 | E Ink | 6.0" | 1072×1448 |
ED060KC1 | E Ink | 6.0" | 1072×1448 |
ED060XC9 | E Ink | 6.0" | 758×1024 |
ED060XD7 | E Ink | 6.0" | 758×1024 |
ED080TC1 | E Ink | 8.0" | 1600×1200 |
ED097TC1 | E Ink | 9.7" | 1200×825 |
ET047TC1 | E Ink | 4.7" | 540×960 |
ET040TC1 | E Ink | 4.0" | 480×720 |
ED043WH1 | E Ink | 4.3" | 480×800 |

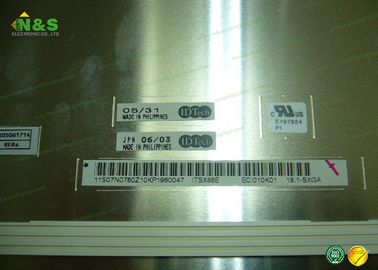

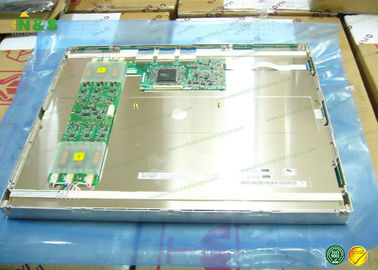

ITSX88E Picture
