AUO M185XW01 V2 LCD Panel 18.5 inch Hard coating with 409.8×230.4 mm Active Area

AUO M185XW01 V2 LCD Panel 18.5 inch Hard coating with 409.8×230.4 mm Active Area

    • AUO M185XW01 V2 LCD Panel 18.5 inch Hard coating with 409.8×230.4 mm Active Area
  • AUO M185XW01 V2 LCD Panel 18.5 inch Hard coating with 409.8×230.4 mm Active Area

    Product Details:

    Place of Origin: KOREA
    Brand Name: AUO
    Certification: ISO9001
    Model Number: M185XW01 V2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 500PCS/DAY
    Contact Now
    Detailed Product Description
    Viewing Angle: 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) Contrast Ratio: 1000:1 (Typ.)
    Brightness: 250 Cd/m² (Typ.) Outline: 430.37×254.6×16.5 Mm
    Surface: Antiglare, Hard Coating (3H) Input Voltage: 5.0V (Typ.)

    AUO M185XW01 V2 LCD Panel 18.5 inch Hard coating with 409.8×230.4 mm Active Area



    M185XW01 V2 Detail

    Panel Brand : AUO
    Panel Model : M185XW01 V2
    Panel Type : a-Si TFT-LCD , LCM
    Panel Size : 18.5 inch
    Resolution : 1366(RGB)×768 , WXGA
    Display Mode : TN, Normally White, Transmissive
    Active Area : 409.8×230.4 mm
    Outline : 430.37×254.6×16.5 mm
    Surface : Antiglare, Hard coating (3H)
    Brightness : 250 cd/m² (Typ.)
    Contrast Ratio : 1000:1 (Typ.)
    Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%
    Response Time : 3.6/1.4 (Typ.)(Tr/Td)
    Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
    Frequency : 60Hz
    Lamp Type : 2 pcs CCFL Without Driver
    Signal Interface : LVDS (1 ch, 8-bit) , 30 pins
    Input Voltage : 5.0V (Typ.)



    Panel Size : 18.5 inch
    Dot Resolution : 1366(RGB)×768 (WXGA)
    Pixel Configuration : RGB Vertical Stripe
    Pixel Density : 84 PPI
    Aspect Ratio : 16:9 (H:V)
    Form Factor : Flat Rectangle Display
    Dot Pitch : 0.100×0.300 mm (H×V)
    Pixel Pitch : 0.300×0.300 mm (H×V)
    Weight : 2.00Kgs (Max.)
    Surface : Antiglare, Hard coating (3H)
    Active Area : 409.8×230.4 mm (H×V)
    Bezel Area : 413.4×234.0 mm (H×V)
    Outline Dimension : 430.37×254.6 mm (H×V)
    Outline Depth : 16.5 (Max.) mm
    Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
    Landscape or Portrait : Landscape type
    Touch Panel : Without



    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    T320HVN05.8 CELL AUO 31.5" 1920×1080
    T500HVN07.5 CELL AUO 50" 1920×1080
    B070EAN02.0 CELL AUO 7.0" 800×1280
    M320QAN01.0 CELL AUO 32.0" 3840×2160
    H546TAN02.0 AUO 5.5" 720×1280
    H598TAN01.0 AUO 6.0" 720×1280
    H546DAN03.3 AUO 5.5" 1080×1920
    H497DAN02.0 AUO 5.0" 1080×1920

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk



    Our Service

    • Long lasting product cycle for continuity thru all phases of project rollouts and servicing

    • Competitive price for different brands hard disk.

    • Mass stock with the better price.

    • Multiple options.

    • Warranty service.

    • Better team to provide the before-sales, on-sale and after-sale service

    • Pls send us message if any hard disk needed.



    The reasons you choose us

    1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

    2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
    3).Fast delievery! Delivery time will be faster than others.
    4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
    5).Best sale-service! Professional team to service with you before sale, on sale & after service.

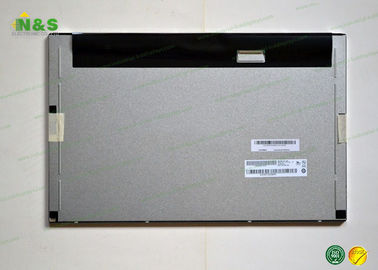

    M185XW01 V2 AUO LCD Panel Picture



    AUO M185XW01 V2 LCD Panel 18.5 inch Hard coating with 409.8×230.4 mm Active Area
