Product Details:
|
| Model:: | G065VN01 V2 | Resolution :: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Contrast Ratio :: | 800:1 (Typ.) | Brightness :: | 340 Cd/m² (Typ.) |
| Signal Interface :: | LVDS (1 Ch, 6-bit) | ||
| High Light: | auo display panel,auo lcd display |
||

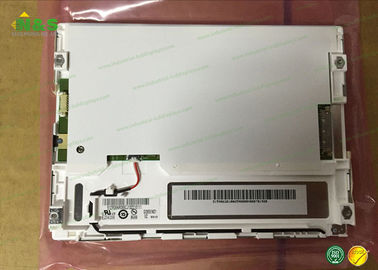

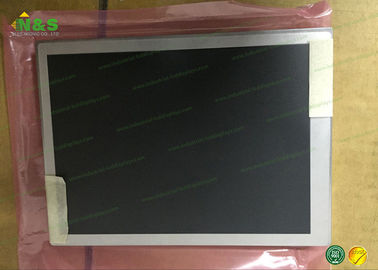

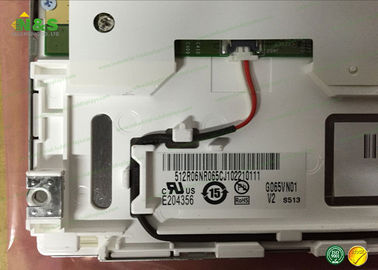

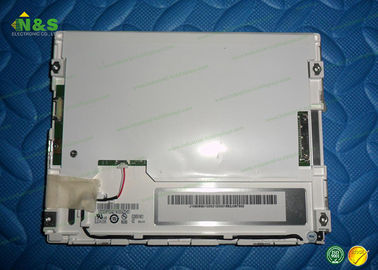

6.5 Inch G065VN01 V2 AUO LCD Panel 640x480 VGA Signal Input LCD Controller Board
| Panel Model : | G065VN01 V2 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.5 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 132.48×99.36 mm |
| Outline : | 153×118×11.2 mm |
| Surface : | Glare (Haze 0%), Hard coating (3H), Antireflection |
| Brightness : | 800 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 55% |
| Response Time : | 15/10 (Typ.)(Tr/Td) |
| Panel Model | Size | Type | Resolution | cd/m2 |
| G065VN01 V2 | 6.5" | LCM | 640×480 | 800 |
| NL6448BC20-30D | 6.5" | LCM | 640×480 | 550 |
| NL6448BC20-21C | 6.5" | LCM | 640×480 | 800 |
| NL6448BC20-21D | 6.5" | LCM | 640×480 | 550 |
| AA065VE01 | 6.5" | LCM | 640×480 | 700 |
| NL6448BC20-30 | 6.5" | LCM | 640×480 | 600 |
| NL6448BC20-30JF | 6.5" | LCM | 640×480 | 950 |
| T-55629D065J-LW-A-AAN | 6.5" | LCM | 640×480 | 700 |
