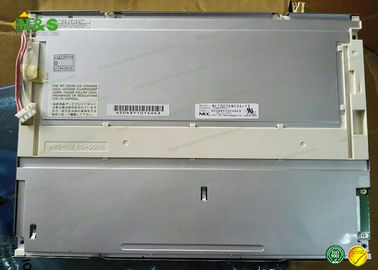

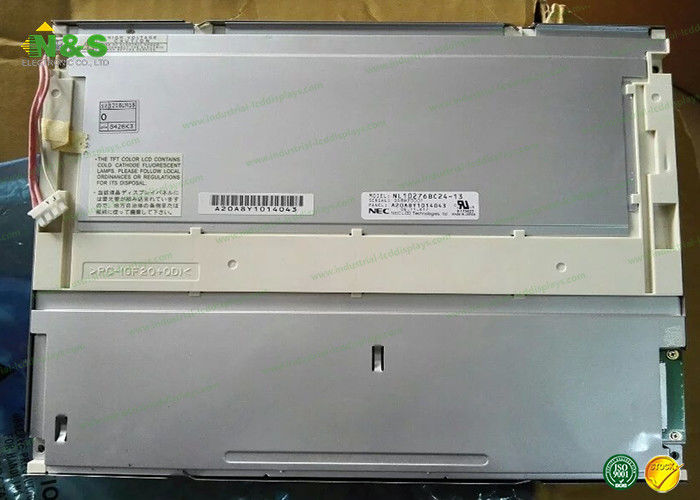

NL10276BC24-13 NEC LCD Panel , medical lcd display 1024 ×768 Resolution

NL10276BC24-13 NEC LCD Panel , medical lcd display 1024 ×768 Resolution

NL10276BC24-13 NEC LCD Panel , medical lcd display 1024 ×768 Resolution

Product Details:

Place of Origin: KOREA
Brand Name: NEC
Certification: ISO9001
Model Number: NL10276BC24-13

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Type: A-Si TFT-LCD , LCM Panel Size: 12.1 Inch
Resolution: 1024(RGB)×768 , XGA Display Mode: TN, Normally White, Transmissive
Active Area: 245.76×184.32 Mm Outline: 280×210×13.7 Mm

NL10276BC24-13 NEC LCD Panel NLT 12.1 inch LCM Normally White



NL10276BC24-13 Information



Panel Size : 12.1 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 105 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.080×0.240 mm (H×V)
Pixel Pitch : 0.240×0.240 mm (H×V)
Weight : 750/780g (Typ./Max.)
Surface : Clear, Hard coating (3H)
Active Area : 245.76×184.32 mm (H×V)
Bezel Area : 249.0×187.5 mm (H×V)
Outline Dimension : 280×210 mm (H×V)
Outline Depth : 13.0/13.7 (Typ./Max.) mm
Holes & Brackets : Face mounting holes (4-Φ3.5) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



NL10276BC24-13 Information



Display Mode : TN, Normally White, Transmissive
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Gamut : 40% NTSC (CIE1931)
Response Time : 8/25 (Typ.)(Tr/Td)
Viewing Angle : 70/70/45/55 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.40 (Typ./Max.)(5 points)
Sunlight Readable : N



FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.



We Can Do for You:

1) One-to-one service with efficient & professional support;

2) Protection of your design and all your private information;

3) We could supply different hard disk for you.

4) Quality stability, can to provide certification of products;

5) Convenient payment methods: PayPal, T/T and Western Union;

6) Speedy shipment: we could arrange the shipment within 1-3 business days.

7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
ED312TT2 E Ink 31.2" 2560×1440
ES133TE1 E Ink 13.3" 2200×1650
ES133TT2 E Ink 13.3" 2200×1650
ED133TT1 E Ink 13.3" 2200×1650
ED060SD1 E Ink 6.0" 600×800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
