Product Details:
|
| Active Area: | 39.6×71.25 Mm | Outline: | 45.1×80.67×2.45 Mm |
|---|---|---|---|
| Viewing Angle: | 70/70/70/70 (Min.)(CR≥10) (L/R/U/D) | Panel Size :: | 3.2 Inch |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||
3.2 inch LMS320HF0X-001 Samsung LCD Panel Flat Rectangle Display with 39.6×71.25 mm
LMS320HF0X-001 Product Information:
| Panel Size : | 3.2 inch |
|---|---|
| Dot Resolution : | 240(RGB)×432 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 153 PPI |
| Aspect Ratio : | 9:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.055×0.165 mm (H×V) |
| Pixel Pitch : | 0.165×0.165 mm (H×V) |
| Weight : | TBD |
| Surface : | Hard coating (2H) = |
| Active Area : | 39.6×71.25 mm (H×V) |
| Outline Dimension : | 45.1×80.67 mm (H×V) |
| Outline Depth : | 2.3±0.15 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Display Mode : | mPVA, Normally Black, TMR |
|---|---|
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) |
| Display Color : | 65K/262K () |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/70/70 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.319; Wy:0.360 |
| White Variation : | 1.43 (Max.)(5 points) |
| Sunlight Readable : | Y |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.

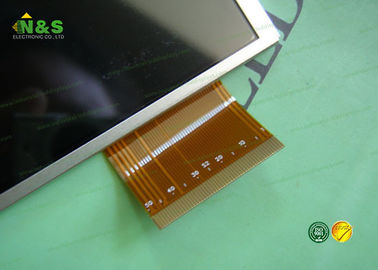

Picture of LMS320HF0X-001 Samsung LCD Panel
