Product Details:
|
| Active Area: | 509.184×286.416 Mm | Outline: | 533.2×312×17 Mm |
|---|---|---|---|
| Viewing Angle: | 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D) | Panel Size :: | 23.0 Inch |
| High Light: | lg display panel,lg replacement screen |
||
23.0 inch Antiglare LM230WF1-TLE3 LG Display with 509.184×286.416 mm Active Area
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
Product Information:
| Panel Size : | 23.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 95 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0884×0.2652 mm (H×V) |
| Pixel Pitch : | 0.2652×0.2652 mm (H×V) |
| Weight : | 2.45/2.6 Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 509.184×286.416 mm (H×V) |
| Bezel Area : | 513.8×291.0 mm (H×V) |
| Outline Dimension : | 533.2×312 mm (H×V) |
| Outline Depth : | 12.9/17.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4 pcs) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |

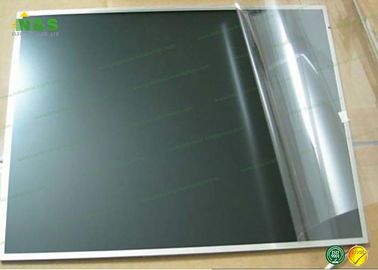

Picture of LM230WF1-TLE3 LG Display
