Product Details:
|
Panel Size: | 20.1 Inch | Active Area: | 433.44×270.9 Mm |
---|---|---|---|
Outline: | 459.4×296.4 Mm | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
High Light: | lg display panel,lg replacement screen |
20.1 inch Hard coating LG LCD Panel LM201W01-STB2 with 433.44×270.9 mm Active Area
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Product Information:
Panel Size : | 20.1 inch |
---|---|
Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 98 PPI |
Aspect Ratio : | 16:10 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.086×0.258 mm (H×V) |
Pixel Pitch : | 0.258×0.258 mm (H×V) |
Weight : | 2.85/3.00Kgs (Typ./Max.) |
Surface : | Antiglare (Haze 25%), Hard coating (3H) |
Active Area : | 433.44×270.9 mm (H×V) |
Bezel Area : | 438.4×275.9 mm (H×V) |
Outline Dimension : | 459.4×296.4 mm (H×V) |
Outline Depth : | 22.8 (Typ.) mm |
Holes & Brackets : | Side mounting holes (4-M3) |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : | S-IPS, Normally Black, Transmissive |
---|---|
Brightness : | 280 cd/m² (Typ.) |
Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
Display Color : | 16.7M (8-bit) |
Color Gamut : | 72% NTSC (CIE1931) |
Response Time : | 7/7 (Typ.)(Tr/Td); 12 (Typ.)(G to G) |
Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | Symmetry |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
Sunlight Readable : | N |

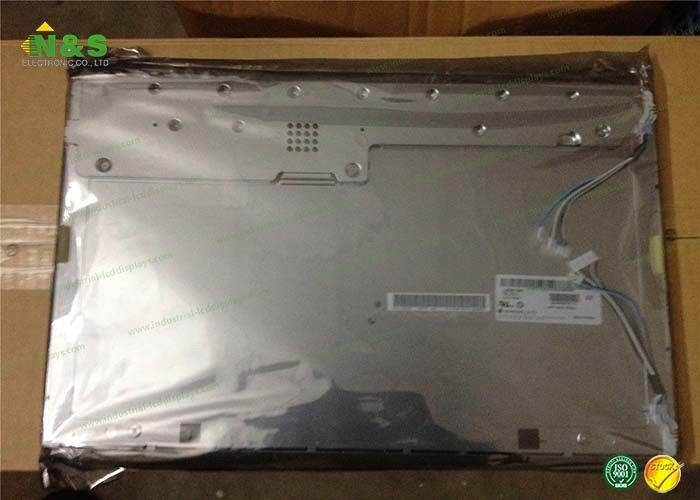

Picture of LG LCD Panel LM201W01-STB2
