Product Details:
|
Panel Size: | 20.0 Inch | Active Area: | 442.8×249.075 Mm |
---|---|---|---|
Outline: | 462.8×272 Mm | Viewing Angle: | 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D) |
High Light: | lg lcd display,lg replacement screen |
Normally White LM200WD3-TLF2 20.0 inch LG Display 442.8×249.075 mm Active Area
Product Information:
Panel Size : | 20.0 inch |
---|---|
Dot Resolution : | 1600(RGB)×900 (HD+) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 91 PPI |
Aspect Ratio : | 16:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.09225×0.27675 mm (H×V) |
Pixel Pitch : | 0.27675×0.27675 mm (H×V) |
Weight : | 1.49/1.50Kgs (Typ./Max.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 442.8×249.075 mm (H×V) |
Bezel Area : | 446.8×253.1 mm (H×V) |
Outline Dimension : | 462.8×272 mm (H×V) |
Outline Depth : | 10.2 (Typ.) mm |
Holes & Brackets : | Side mounting holes (4-M3) on left & right side |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Display Mode : | TN, Normally White, Transmissive |
---|---|
Brightness : | 250 cd/m² (Typ.) |
Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
Display Color : | 16.7M (6-bit + Hi-FRC) |
Color Gamut : | 72% NTSC (CIE1931) |
Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
Viewing Angle : | 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
White Variation : | 1.33 (Max.)(9 points) |
Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
LG 1.3 Circular P-OLED | LG Display | 1.3" | 320×320 |
LH300WQ1-ED01 | LG Display | 3.0" | 240×400 |
LB050S01-RD02 | LG Display | 5.0" | 800×600 |
LB050S01-RD01 | LG Display | 5.0" | 800×600 |
LC430DUY-SHA3 | LG Display | 43" | 1920×1080 |
LD490EPY-SHP1 | LG Display | 49" | 1920×1080 |
LD550DPY-SHP1 | LG Display | 55" | 1920×1080 |
LC490EGY-SHM3 | LG Display | 49" | 3840×2160 |
LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
LC320DXY-SHA3 | LG Display | 31.5" | 1366×768 |

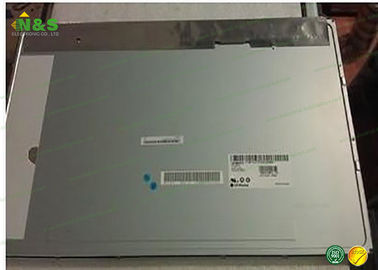

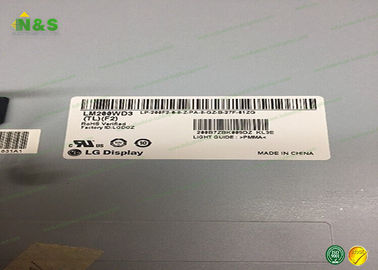

LM200WD3-TLF2 Picture
