Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 , WSVGA | Display Mode: | IPS, Normally Black, Transmissive |
| Active Area: | 153.6×90 Mm | Outline: | 162.8×102.9×2.67 Mm |
| High Light: | lg lcd display,lg replacement screen |
||

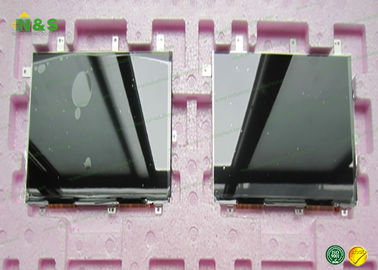

7.0 inch LD070WS1-SL02 LG LCD Panel LG Display with 153.6×90 mm Active Area
LD070WS1-SL02 Specification
| Panel Size : | 7.0 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 169 PPI |
| Aspect Ratio : | 17:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.050×0.150 mm (H×V) |
| Pixel Pitch : | 0.150×0.150 mm (H×V) |
| Weight : | 94/95g (Typ./Max.) |
| Surface : | Hard coating |
| Active Area : | 153.6×90 mm (H×V) |
| Outline Dimension : | 162.8×102.9 mm (H×V) |
| Outline Depth : | 2.47±0.2 mm |
| Holes & Brackets : | Face mounting holes (8 pcs) on left, right, up, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | IPS, Normally Black, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Response Time : | 50 (Max.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.310; Wy:0.340 |
| White Variation : | 1.25/1.40 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH530WX1-SH02 | LG Display | 5.3" | 720×1280 |
| LH500WX2-SH01 | LG Display | 5.0" | 720×1280 |
| LH176J03-SH02 | LG Display | 1.8" | 220×176 |
| LH176J04-TH01 | LG Display | 1.8" | 176×220 |
| LM230WF5-TJC3 | LG Display | 23.0" | 1920×1080 |
| LD470DUJ-SFE1 | LG Display | 47" | 1920×1080 |
