Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 20.0 Inch |
|---|---|---|---|
| Resolution: | 1600(RGB)×900 , HD+ | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 442.8×249.075 Mm | Outline: | 462.8×272×10.3 Mm |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

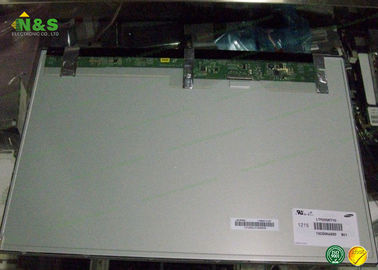

Active Area LTM200KT10 Samsung LCD Panel Samsung 20.0 inch LCM with 442.8×249.075 mm
LTM200KT10 Information
| Panel Size : | 20.0 inch |
| Dot Resolution : | 1600(RGB)×900 (HD+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.09225×0.27675 mm (H×V) |
| Pixel Pitch : | 0.27675×0.27675 mm (H×V) |
| Weight : | 1.70Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 442.8×249.075 mm (H×V) |
| Bezel Area : | 446.8×253.2 mm (H×V) |
| Outline Dimension : | 462.8×272 mm (H×V) |
| Outline Depth : | 10.3 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 5 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS465GS47 | Samsung | 4.7" | 720×1280 |
| AMS477GV11 | Samsung | 4.8" | 720×1280 |
| AMS499QP59 | Samsung | 5.0" | 1080×1920 |
| AMS499QP53 | Samsung | 5.0" | 1080×1920 |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
