Product Details:
|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.3 Inch |
---|---|---|---|
Resolution: | 480×272(RGB) , WQVGA | Display Mode: | VA, Normally Black, TMR |
Active Area: | 95.04×53.856 Mm | Outline: | 105.5×67.2 Mm |
High Light: | samsung lcd screen,samsung lcd display panel |

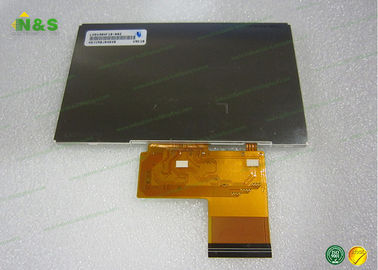

LMS430HF18 Samsung LCD Panel Samsung 4.3 inch LCM 480×272 with 95.04×53.856 mm
Panel Model | LMS430HF18 |
Panel Brand | SAMSUNG |
Descrition | a-Si TFT-LCD ,4.3 inch, 480×272 |
Panel Type | a-Si TFT-LCD |
Display Mode | VA, Normally Black, TMR |
Active Area | 95.04×53.856 mm |
Outline | 105.5×67.2 mm |
Contrast Ratio | 800 : 1 (Typ.) |
Display Colors | 16.7M (8-bit) , CIE1931 50% |
Response Time | 17/15 (Typ.)(Tr/Td) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
Frequency | 60Hz |
Lamp Type | 10S1P WLED Without Driver |
Signal Interface | Parallel RGB (1 ch, 8-bit) , 45 pins |
Input Voltage | 2.5/3.3V (Typ.)(VDD) |
