Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.0 Inch |
|---|---|---|---|
| Resolution: | 480(RGB)×800 , WVGA | Display Mode: | IPS, Normally Black, Transmissive |
| Active Area: | 64.8×108 Mm | Outline: | 71.4×120.4×4.31 Mm |
| High Light: | lg display panel,lg lcd display |
||

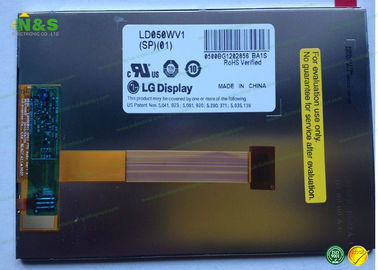

LD050WV1-SP01 LG LCD Panel LG Display 5.0 inch LCM with 64.8×108 mm Active Area
LD050WV1-SP01 Information
| Panel Size : | 5.0 inch |
| Dot Resolution : | 480(RGB)×800 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 188 PPI |
| Aspect Ratio : | 3:5 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.045×0.135 mm (H×V) |
| Pixel Pitch : | 0.135×0.135 mm (H×V) |
| Weight : | 43.6/45.0g (Typ,/Max.) |
| Surface : | Antiglare |
| Active Area : | 64.8×108 mm (H×V) |
| Bezel Area : | 67.2×110.4 mm (H×V) |
| Outline Dimension : | 71.4×120.4 mm (H×V) |
| Outline Depth : | 2.5/4.31 (Typ./Max.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| Display Mode : | IPS, Normally Black, Transmissive |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.25/1.40 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH530WX1-SH02 | LG Display | 5.3" | 720×1280 |
| LH500WX2-SH01 | LG Display | 5.0" | 720×1280 |
| LH176J03-SH02 | LG Display | 1.8" | 220×176 |
| LH176J04-TH01 | LG Display | 1.8" | 176×220 |
