Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 22.0 Inch |
|---|---|---|---|
| Resolution: | 1680(RGB)×1050 , WSXGA+ | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 473.76×296.1 Mm | Outline: | 493.7×320.1 Mm |
| High Light: | lg display panel,lg lcd display |
||

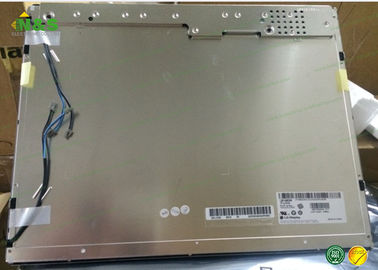

Normally White LM220WE1-TLP1 LG LCD Panel LG Display 22.0 inch LCM
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
LM220WE1-TLP1 Information
| Panel Size : | 22.0 inch |
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 90 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.094×0.282 mm (H×V) |
| Pixel Pitch : | 0.282×0.282 mm (H×V) |
| Weight : | 2.35Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 473.76×296.1 mm (H×V) |
| Bezel Area : | 477.7×300.1 mm (H×V) |
| Outline Dimension : | 493.7×320.1 mm (H×V) |
| Outline Depth : | 14.5 (Tpy.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
