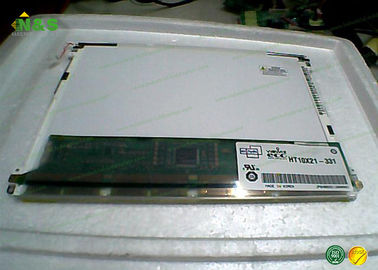

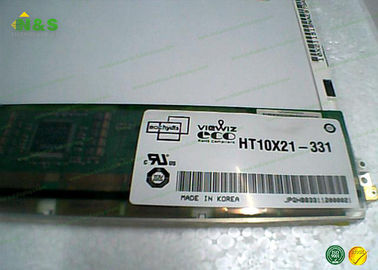

Product Details:
|
| Contrast Ratio: | 500:1 (Typ.) | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | FFS, Normally Black, Transmissive |
| Frequency: | 60Hz | Signal Interface: | LVDS (1 Ch, 6-bit) , 14 Pins |
| High Light: | industrial touch screen display,industrial lcd screen |
||
| Panel Size : | 10.4 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 123 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) |
| Weight : | 225/235g (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 210.432×157.824 mm (H×V) |
| Bezel Area : | 216.6×162.4 mm (H×V) |
| Outline Dimension : | 238.6×173.2 mm (H×V) |
| Outline Depth : | 6.8 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Ф3.0) + (4-M2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | FFS, Normally Black, Transmissive |
| Brightness : | 170 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 40 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.318; Wy:0.343 |
| White Variation : | 1.43 (Max.)(5 points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HVA40WV1-D02 | HYDIS | 4.0" | 480×800 |
| HV070WS1-P01 | HYDIS | 7.0" | 1024×600 |
| HV070WS1-P00 | HYDIS | 7.0" | 1024×600 |
| HVT35HV1-DE1 | HYDIS | 3.5" | 320×480 |
| HVA37WV1-D01 | HYDIS | 3.7" | 480×800 |
| HVA37WV1-DE1 | HYDIS | 3.7" | 480×800 |
| HX104X01-211 | HYDIS | 10.4" | 1024×768 |
| HVA40WV1-D00 | HYDIS | 4.0" | 480×800 |
| HVA35WV1-D00 | HYDIS | 3.5" | 480×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
