Product Details:
|
| Panel Brand: | AUO | Panel Model: | B101UAN02.1 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.1 Inch |
| Resolution: | 1920(RGB)×1200 , WUXGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | auo display panel,auo lcd screen |
||
B101UAN02.1 AUO LCD Panel 10.1 inch LCM 1920×1200 400 800:1 16.7M WLED LVDS
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
B101UAN02.1 Specification
| Panel Brand : | AUO |
| Panel Model : | B101UAN02.1 1 Compatible model |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.1 inch |
| Resolution : | 1920(RGB)×1200 , WUXGA |
| Display Mode : | AHVA, Normally Black, Transmissive |
| Active Area : | 216.81×135.5 mm |
| Outline : | 229.45×149.2×5 mm |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 68% |
| Response Time : | 13/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 5 strings WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 50 pins |
| Input Voltage : | 3.3V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 224 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.038×0.113 mm (H×V) |
| Pixel Pitch : | 0.113×0.113 mm (H×V) |
| Weight : | 138g (Max.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 216.81×135.5 mm (H×V) |
| Bezel Area : | 219.406×138.104 mm (H×V) |
| Outline Dimension : | 229.45×149.2 mm (H×V) |
| Outline Depth : | 2.5/5.0 (Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

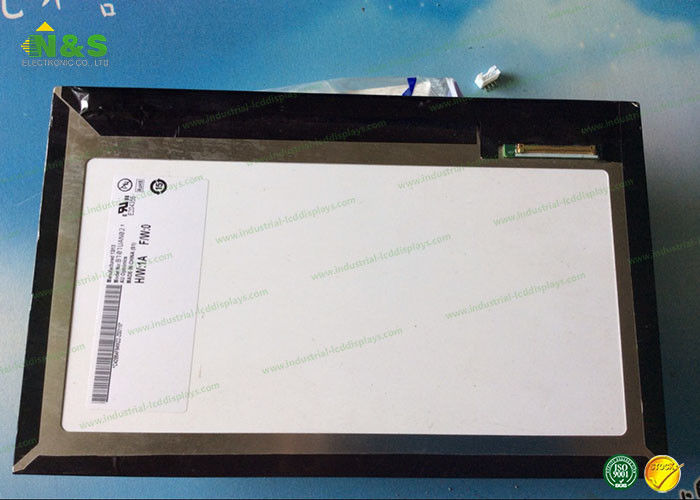

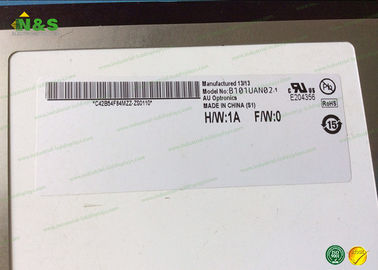

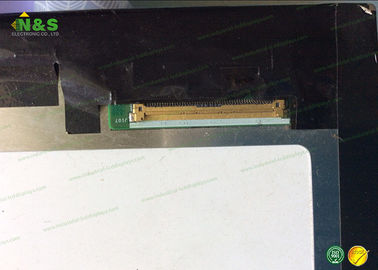

B101UAN02.1 Picture
