Product Details:
|
| Panel Brand: | AUO | Panel Model: | B084SN01 V0 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.4 Inch |
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | auo display panel,auo lcd display |
||
AU Optronics B084SN01 V0 8.4 inch AUO LCD Panel with 170.4×127.8 mm Active Area
B084SN01 V0 Specification
| Panel Brand : | AU Optronics |
| Panel Model : | B084SN01 V0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.4 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 170.4×127.8 mm |
| Outline : | 203×142.5 mm |
| Surface : | |
| Brightness : | 150 cd/m² (Typ.) |
| Contrast Ratio : | 250:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 20/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/30/10 (Min.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 8.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 230±10g |
| Active Area : | 170.4×127.8 mm (H×V) |
| Bezel Area : | 173.8×131.2 mm (H×V) |
| Outline Dimension : | 203×142.5 mm (H×V) |
| Outline Depth : | 5.7±0.3 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.0, 2-R1.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X546DLT01 | AUO | 5.5" | 1080×1920 |
| X163QLN01 | AUO | 1.63" | 320×320 |
| H499TLB01 V0 | AUO | 5.0" | 720×1280 |
| H020HD01 V0 | AUO | 2.0" | 176×220 |
| A020AE01 V0 | AUO | 2.0" | 172×72 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

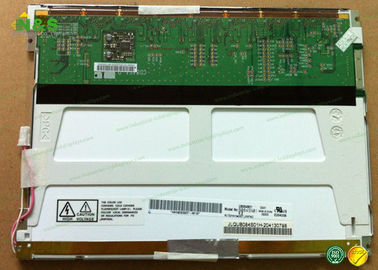

B084SN01 V0 Picture
