Product Details:
|
| Panel Brand: | AUO | Panel Model: | M190EG01 V0 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 19.0 Inch |
| Resolution: | 1280(RGB)×1024 , SXGA | Display Mode: | P-MVA, Normally Black, Transmissive |
| High Light: | auo display panel,auo lcd screen |
||
Normally Black M190EG01 V0 AUO lcd panel laptop / 19.0 inch tft lcd module
M190EG01 V0 Detail
| Panel Brand : | AUO |
| Panel Model : | M190EG01 V0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.0 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | P-MVA, Normally Black, Transmissive |
| Active Area : | 376.32×301.056 mm |
| Outline : | 396×324×17.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1300:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 2.50/2.70Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 380.32×305.06 mm (H×V) |
| Outline Dimension : | 396×324 mm (H×V) |
| Outline Depth : | 14.33/17.5 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

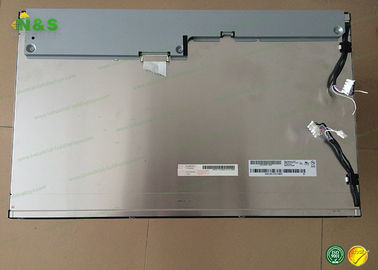

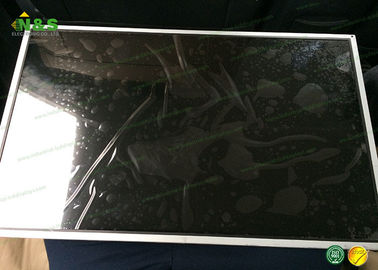

M190EG01 V0 Picture
