Product Details:
|
| Contrast Ratio: | 600:1 (Typ.) | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Surface: | Antiglare, Hard Coating (3H) |
| Frequency: | 60Hz | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins |
| High Light: | auo lcd screen,auo lcd display |
||
G084SN03 V3 8.4 inch Antiglare AUO LCD Panel for Industrial Application
| Panel Size : | 8.4 inch | |
| Dot Resolution : | 800(RGB)×600 (SVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 119 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.071×0.213 mm (H×V) | |
| Pixel Pitch : | 0.213×0.213 mm (H×V) | |
| Weight : |
| |
| Surface : | Antiglare, Hard coating (3H) | |
| Active Area : | 170.4×127.8 mm (H×V) | |
| Bezel Area : | 173.8×131.2 mm (H×V) | |
| Outline Dimension : | 203×142.5 mm (H×V) | |
| Outline Depth : | 5.7 (Typ.) mm | |
| Holes & Brackets : | Face mounting holes (2-Φ3.0, 2-R1.5) | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
| |
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) | |
| Color Gamut : | 45% NTSC (CIE1931) | |
| Response Time : | 20/10 (Typ.)(Tr/Td) | |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) | |
| White color Chromaticity : |
| |
| White Variation : | 1.33 (Typ.)(9 points) | |
| Sunlight Readable : | N |
Our Company Strength in LCD Screen Sourcing:
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| A090XE01 V6 | AUO | 9.0" | 1024×768 |
| A090XE01 V5 | AUO | 9.0" | 1024×768 |
| A043SE01 V3 | AUO | 4.3" | 600×800 |
| H283QN00 V6 | AUO | 2.8" | 240×320 |
| M270DAN01.0 CELL | AUO | 27.0" | 2560×1440 |
| H644DAN01.1 | AUO | 6.5" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

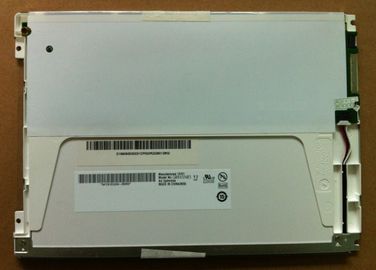

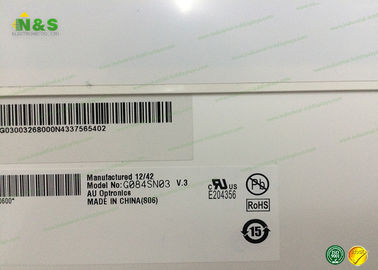

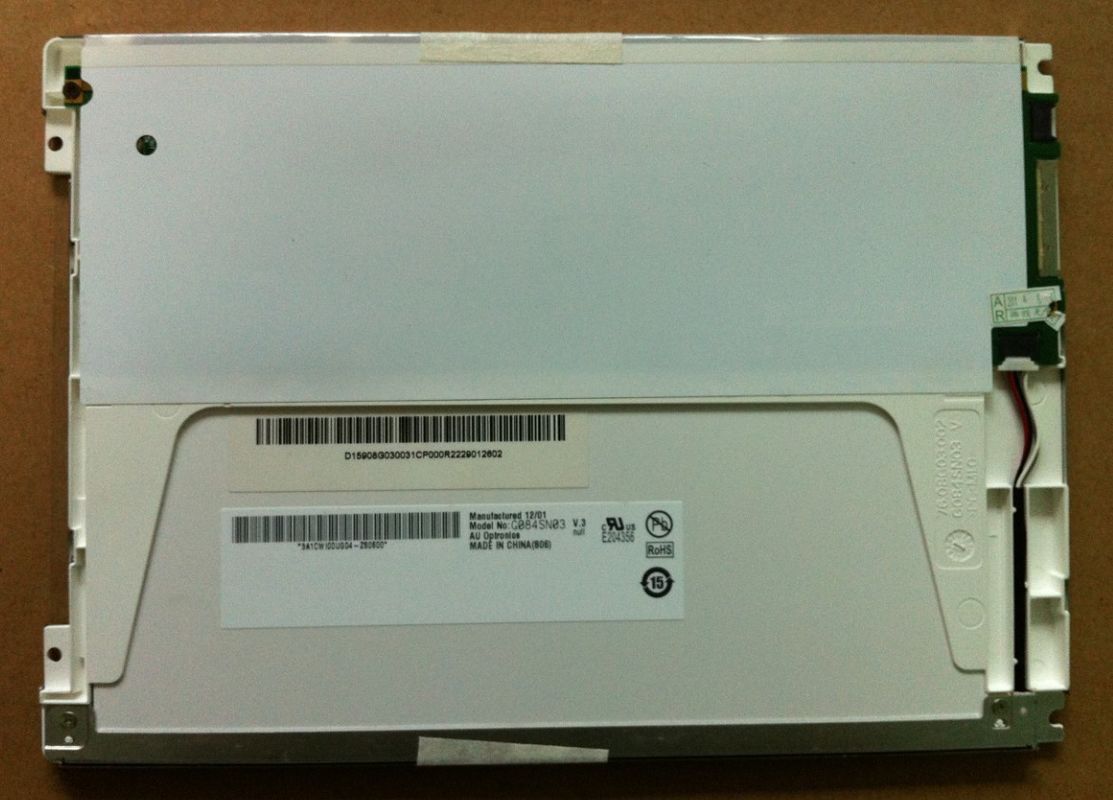

G084SN03 V3 Picture
