Product Details:
|
| Panel Brand: | CPT | Panel Model: | CLAA156WA07A |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 15.6 Inch |
| Resolution: | 1366(RGB)×768 , WXGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 344.232×193.536 Mm | Outline: | 359.8×210×7.8 Mm |
| Shape Style: | Wedge (PCBA Bent, Depth ≥5.2mm) | Surface: | Glare (Haze 0%) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

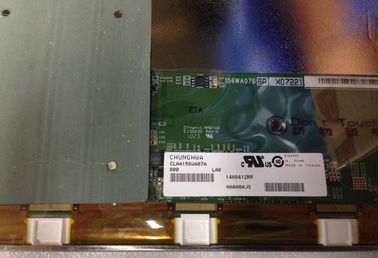

15.6 CLAA156WA07A Industrial LCD Displays with 344.232×193.536 mm Active Area
| Panel Size : | 15.6 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 100 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.084×0.252 mm (H×V) |
| Pixel Pitch : | 0.252×0.252 mm (H×V) |
| Weight : | 520g (Max.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 344.232×193.536 mm (H×V) |
| Bezel Area : | 347.74×197.04 mm (H×V) |
| Outline Dimension : | 359.8×210 mm (H×V) |
| Outline Depth : | 7.8 (Max.) mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets : | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 3/5 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/15/30 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25 (Max.)(5 points) |
| 3D Display : | |
| Sunlight Readable : | N |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ72 | CPT | 4.5" | 480×854 |
| CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
| CLAD015GC41 AX | CPT | 1.5" | 240×240 |
| CLAA090WK05XN | CPT | 9.0" | 1280×720 |
| CLAC080XA12LW | CPT | 8.0" | 1024×768 |
| CLAD015GB01 AX | CPT | 1.5" | 240×240 |
| CLAG045LG71 XX | CPT | 4.5" | 480×854 |
