Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
|---|---|---|---|
| Resolution: | 400(RGB)×240 , WQVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 143.4×79.326 Mm | Outline: | 157×94.4×13.6 Mm |
| High Light: | auo lcd screen,auo lcd display |
||

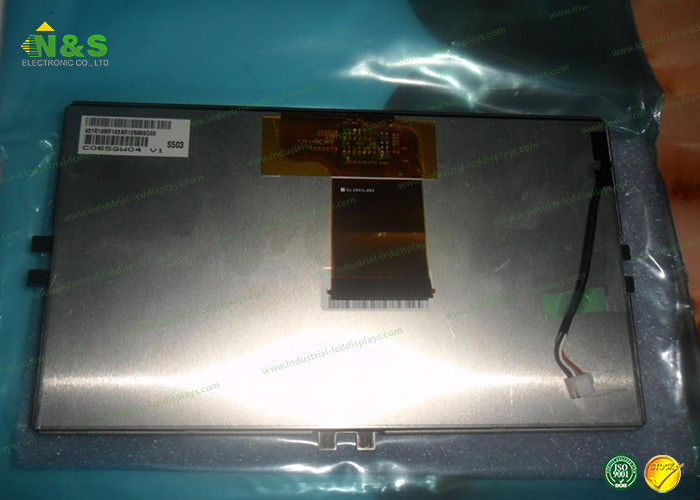

Normally Black C065GW04 V1 replacement lcd display screen Antireflection Surface
C065GW04 V1 Basic Information
| Panel Model | C065GW04 V1 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,6.5 inch, 400×240 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | C065GW04 V.1 |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -40 ~ 95 °C |
| Vibration Resistance | 2.9G (28.4 m/s²) |
C065GW04 V1 Mechanical Features
| Dot Resolution | 400(RGB)×240 (WQVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 72 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1195×0.3305 mm (H×V) |
| Pixel Pitch | 0.3585×0.3305 mm (H×V) |
| Weight | 160g (Typ.) |
| Surface | Antiglare, Antireflection |
| Active Area | 143.4×79.326 mm (H×V) |
| Bezel Area | 145.1×81.1 mm (H×V) |
| Outline Dimension | 158×95.4 mm (H×V) |
| Outline Depth | 7.3±0.3 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Packing & Delivery for our LCD Screen Panel Replacements:
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
