Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
|---|---|---|---|
| Resolution: | 400(RGB)×240 , WQVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 143.4×79.326 Mm | Outline: | 157×94.4×13.6 Mm |
| High Light: | auo display panel,auo lcd display |
||

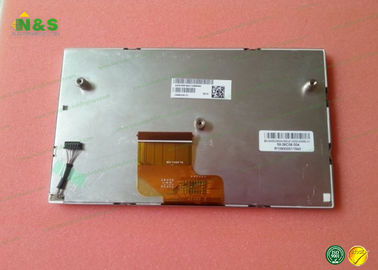

6.5 C065GW04 V0 400×240 AUO lcd panel repair for CAR Display player
C065GW04 V0 Basic Information
| Panel Model | C065GW04 V0 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,6.5 inch, 400×240 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | C065GW04 V.0 |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -40 ~ 85 °C |
| Vibration Resistance | 2.9G (28.4 m/s²) |
| Remarks | LCF (light control film) is integrated in backlight; DE/SYNC mode selectable. |
C065GW04 V0 Mechanical Features
| Dot Resolution | 400(RGB)×240 (WQVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 72 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1195×0.3305 mm (H×V) |
| Pixel Pitch | 0.3585×0.3305 mm (H×V) |
| Weight | 150±15g |
| Surface | Antiglare, Reflection 1.0% (Max.) |
| Active Area | 143.4×79.326 mm (H×V) |
| Bezel Area | 145.1×81.1 mm (H×V) |
| Outline Dimension | 157×94.4 mm (H×V) |
| Outline Depth | 6.8/13.6 (Typ./Max.) mm |
| Holes & Brackets | Rear mounting poles (3 pcs) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
