Product Details:
|
| Panel Size: | 8.0 Inch | Active Area: | 176.64×99.36 Mm |
|---|---|---|---|
| Outline: | 199×121×19 Mm | Viewing Angle: | 70/70/60/50 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | lg lcd display,lg replacement screen |
||
Transmissive LB080WV4-TD04 LG LCD PANEL 8.0 inch with 176.64×99.36 mm Active Area
Product Information:
| Panel Brand : | LG. LCD | |
| Panel Model : | LB080WV4-TD04 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 8.0 inch | |
| Resolution : | 800(RGB)×480 , WVGA | |
|
TN, Normally White, Transmissive | |
| Active Area : | 176.64×99.36 mm | |
| Outline : | 199×121×19 mm | |
| Surface : | Antiglare | |
| Brightness : | 500 cd/m² (Typ.) | |
| Contrast Ratio : | 400:1 (Typ.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 10/20 (Typ.)(Tr/Td) | |
|
70/70/60/50 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 2 pcs CCFL Embedded (Inverter) | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 30 pins | |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 8.0 inch | |
| Dot Resolution : | 800(RGB)×480 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 116 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0736×0.2070 mm (H×V) | |
| Pixel Pitch : | 0.2208×0.2070 mm (H×V) | |
| Weight : | 375g (Max.) | |
|
Antiglare | |
| Active Area : | 176.64×99.36 mm (H×V) | |
| Bezel Area : | 180.0×102.8 mm (H×V) | |
| Outline Dimension : | 199×121 mm (H×V) | |
| Outline Depth : | 16.8/19.0 (Typ./Max.) mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LC320DXY-SJA1 | LG Display | 31.5" | 1366×768 |
| LC490EQY-SHM2 | LG Display | 49" | 3840×2160 |
| LC490DUJ-SGE4 | LG Display | 49" | 1920×1080 |
| LC490EGY-SHM2 | LG Display | 49" | 3840×2160 |
| LC490EGY-SHF1 | LG Display | 49" | 3840×2160 |
| LC490EGJ-SHA1 | LG Display | 49" | 3840×2160 |
| LC490EGY-SHA1 | LG Display | 49" | 3840×2160 |
| LM238WF2-SJF1 | LG Display | 23.8" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

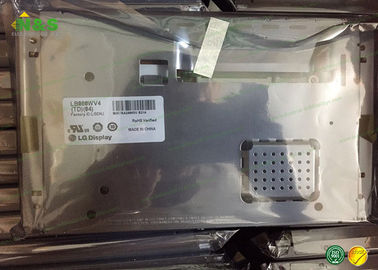

LB080WV4-TD04 Picture
