Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 , WXGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 261.12×163.2 Mm | Outline: | 278.2×184×14.1 Mm |
| High Light: | auo lcd screen,auo lcd display |
||

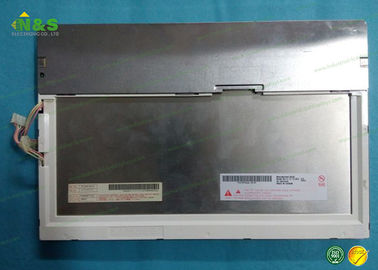

A121EW02 V0 AUO LCD Panel , 12.1 inch lcd replacement screens LCM 1280×800
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
A121EW02 V0 Information
| Panel Model | A121EW02 V0 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 261.12×163.2 mm |
| Outline | 278.2×184×14.1 mm |
| Contrast Ratio | 350:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 4 pcs CCFL Without Driver |
| Signal Interface | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage | 3.3V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H429ALN01 V0 | AUO | 4.3" | 540×960 |
| H163QLN01.1 | AUO | 1.63" | 320×320 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Contact Person: savvy,ren
Tel: +8613302928193
