Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 152.4×91.44 Mm | Outline: | 154×119.2×5.4 Mm |
| High Light: | auo display panel,auo lcd display |
||

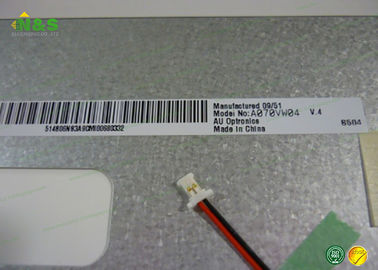

Normally White A070VW04 V4 AUO LCD Panel 7.0 inch LCM for Portable DVD player panel
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
A070VW04 V4 Information
| Dot Resolution : | 800(RGB)×480 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 133 PPI | |
| Aspect Ratio : | 15:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) | |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare | |
| Active Area : | 152.4×91.44 mm (H×V) | |
| Bezel Area : | 154.4×93.44 mm (H×V) | |
| Outline Dimension : | 164×103 mm (H×V) | |
| Outline Depth : | 5.1±0.3 mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : |
|
|
| Display Mode : | TN, Normally White, Transmissive | |
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Response Time : | 12/18 (Typ.)(Tr/Td) | |
| Viewing Angle : | 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D) | |
| White color Chromaticity : |
|
|
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | |
| Sunlight Readable : | N |
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| M270DAN01.1 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
