Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 152.4×91.44 Mm | : 164×103×5.4 Mm Surface : Antiglare Brightness : 200 Cd/m² (Typ.) Contrast Ratio : 300:1 (Typ: | 0 |
| High Light: | auo lcd screen,auo lcd display |
||

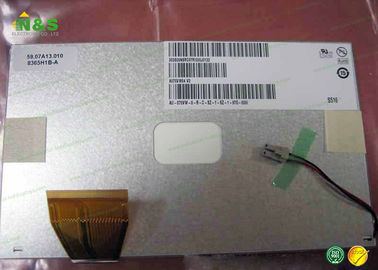

7.0 inch A070VW04 V3 AUO LCD Panel with 152.4×91.44 mm Active Area Normally White
A070VW04 V3 Information
|
|
||
| Dot Resolution : | 800(RGB)×480 (WVGA) | ||
| Pixel Configuration : | RGB Vertical Stripe | ||
| Pixel Density : | 133 PPI | ||
| Aspect Ratio : | 15:9 (H:V) | ||
| Form Factor : | Flat Rectangle Display | ||
| Dot Pitch : | 0.0635×0.1905 mm (H×V) | ||
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) | ||
| Weight : |
|
||
| Surface : | Antiglare | ||
| Active Area : | 152.4×91.44 mm (H×V) | ||
| Bezel Area : | 154.4×93.44 mm (H×V) | ||
| Outline Dimension : | 164×103 mm (H×V) | ||
| Outline Depth : | 5.1±0.3 mm | ||
| Holes & Brackets : | Without | ||
| Landscape or Portrait : | Landscape type | ||
| Touch Panel : |
|
||
|
TN, Normally White, Transmissive | ||
| Brightness : | 200 cd/m² (Typ.) | ||
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) | ||
| Display Color : | 16.7M (8-bit) | ||
| Response Time : | 12/18 (Typ.)(Tr/Td) | ||
| Viewing Angle : | 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D) | ||
| White color Chromaticity : | Wx:0.310; Wy:0.330 | ||
| Sunlight Readable : | N |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| M270DAN01.1 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
