Product Details:
|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
---|---|---|---|
Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
Active Area: | 141.6×106.2 Mm | Outline: | 154×119.2×6.74 Mm |
High Light: | auo lcd screen,auo lcd display |

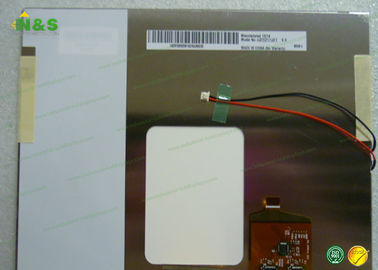

Normally White A070SN01 V3 AUO LCD Panel 7.0 inch LCM with 154.08×86.58 mm Active Area
A070SN01 V3 Information
|
|
||
Dot Resolution : | 800(RGB)×600 (SVGA) | ||
Pixel Configuration : | RGB Vertical Stripe | ||
Pixel Density : | 143 PPI | ||
Aspect Ratio : | 4:3 (H:V) | ||
Form Factor : | Flat Rectangle Display | ||
Dot Pitch : | 0.059×0.177 mm (H×V) | ||
Pixel Pitch : | 0.177×0.177 mm (H×V) | ||
Weight : |
|
||
Surface : | Antiglare (Haze 8%), Hard coating (3H) | ||
Active Area : | 141.6×106.2 mm (H×V) | ||
Outline Dimension : | 154×119.2 mm (H×V) | ||
Outline Depth : | 6.44±0.3 mm | ||
Holes & Brackets : | Without | ||
Landscape or Portrait : | Landscape type | ||
Touch Panel : |
|
||
isplay Mode : | TN, Normally White, Transmissive | ||
Brightness : | 200 cd/m² (Typ.) | ||
Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | ||
Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | ||
Color Gamut : | 50% NTSC (CIE1931) | ||
Response Time : | 3/13 (Typ.)(Tr/Td) | ||
Viewing Angle : | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) | ||
White color Chromaticity : | Wx:0.300; Wy:0.320 | ||
White Variation : |
|
||
Sunlight Readable : | N |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Here comes our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
H497TLB01.4 | AUO | 5.0" | 720×1280 |
H500TLB01.0 | AUO | 5.0" | 720×1280 |
X546DLB01.0 | AUO | 5.5" | 1080×1920 |
H429ALN01 V0 | AUO | 4.3" | 540×960 |
H163QLN01.1 | AUO | 1.63" | 320×320 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
To get the latest prices, pls feel free to contact us.
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
