Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 141.6×106.2 Mm | Outline: | 154×119.2×5.4 Mm |
| High Light: | auo display panel,auo lcd display |
||

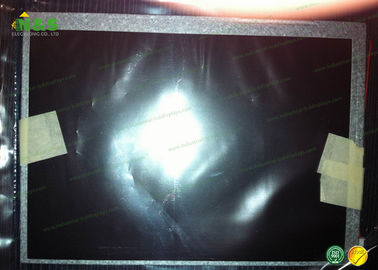

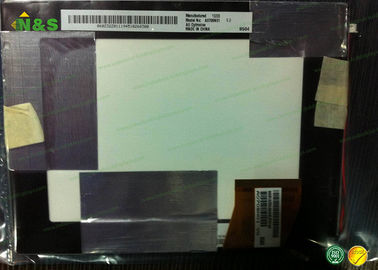

A070SN01 V0 AUO LCD Panel 7.0 inch LCM 800×600 with141.6×106.2 mm Active Area
A070SN01 V0 Information
|
800(RGB)×600 (SVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 143 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.059×0.177 mm (H×V) | |
| Pixel Pitch : | 0.177×0.177 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare | |
| Active Area : | 141.6×106.2 mm (H×V) | |
| Bezel Area : | 143.6×108.2 mm (H×V) | |
| Outline Dimension : | 154×119.2 mm (H×V) | |
| Outline Depth : | 5.1±0.3 mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : |
|
|
| Display Mode : | TN, Normally White, Transmissive | |
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K/16.2M (6-bit / 6-bit + Dithering) | |
| Color Gamut : | 50% NTSC (CIE1931) | |
| Response Time : | 3/13 (Typ.)(Tr/Td) | |
| Viewing Angle : | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) | |
| White color Chromaticity : | Wx:0.300; Wy:0.320 | |
| White Variation : |
|
|
| Sunlight Readable : | N |
Our Advantages
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
