Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 900(RGB)×1440 , WXGA+ | Display Mode: | AHVA, Normally Black, Transmissive |
| Active Area: | 94.23×150.77 Mm | Outline: | 104.53×163.64×2.3 Mm |
| High Light: | auo display panel,auo lcd screen |
||

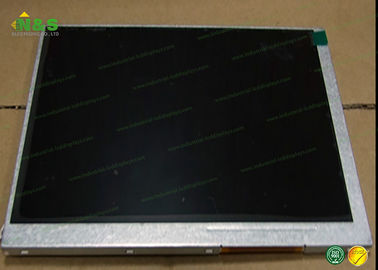

A070PAN01.0 AUO LCD Panel 7.0 inch LCM Normally Black 900×1440 450 60Hz
A070PAN01.0 Information
|
|
||
| Dot Resolution : | 900(RGB)×1440 (WXGA+) | ||
| Pixel Configuration : | RGB Vertical Stripe | ||
| Pixel Density : | 242 PPI | ||
| Aspect Ratio : | 10:16 (H:V) | ||
| Form Factor : | Flat Rectangle Display | ||
| Dot Pitch : | 0.0349×0.1047 mm (H×V) | ||
| Pixel Pitch : | 0.1047×0.1047 mm (H×V) | ||
| Weight : |
|
||
| Surface : | Hard coating | ||
| Active Area : | 94.23×150.77 mm (H×V) | ||
| Outline Dimension : | 104.53×163.64 mm (H×V) | ||
| Outline Depth : | 2.1±0.2 mm | ||
| Landscape or Portrait : | Portrait type | ||
| Touch Panel : |
|
||
|
AHVA, Normally Black, Transmissive | ||
| Brightness : | 450 cd/m² (Typ.) | ||
| Contrast Ratio : | 900 : 1 (Typ.) (Transmissive) | ||
| Display Color : | 16.7M (8-bit) | ||
| Color Gamut : | 50% NTSC (CIE1931) | ||
| Response Time : | 18/12 (Typ.)(Tr/Td) | ||
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) | ||
| Viewing Direction : | Symmetry | ||
| White color Chromaticity : |
|
||
| White Variation : | 1.25/1.43 (Max.)(5/13 points) | ||
| Sunlight Readable : | N |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
