Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 480(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 154.08×86.58 Mm | Outline: | 164.9×100 Mm |
| High Light: | auo lcd screen,auo lcd display |
||

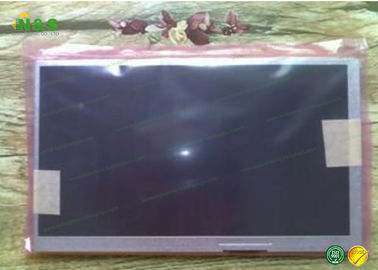

A070FW03 V7 AUO LCD Panel Normally White 7.0 inch LCM 480×234 280 400:1
A070FW03 V7 Information
|
|
||
| Dot Resolution : | 480(RGB)×234 | ||
| Pixel Configuration : | RGB Vertical Stripe | ||
| Pixel Density : | 76 PPI | ||
| Aspect Ratio : | 16:9 (H:V) | ||
| Form Factor : | Flat Rectangle Display | ||
| Dot Pitch : | 0.107×0.370 mm (H×V) | ||
| Pixel Pitch : | 0.321×0.370 mm (H×V) | ||
| Weight : |
|
||
| Surface : | Antiglare (Haze 25%) | ||
| Active Area : | 154.08×86.58 mm (H×V) | ||
| Bezel Area : | 156.4×89.0 mm (H×V) | ||
| Outline Dimension : | 164.9×100 mm (H×V) | ||
| Outline Depth : | 5.7 (Typ.) mm | ||
| Landscape or Portrait : | Landscape type | ||
| Touch Panel : |
|
||
| Display Mode : | TN, Normally White, Transmissive | ||
| Brightness : | 280 cd/m² (Typ.) | ||
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) | ||
| Response Time : | 12/18 (Typ.)(Tr/Td) | ||
| Viewing Angle : | 65/65/40/65 (Typ.)(CR≥10) (L/R/U/D) | ||
| Viewing Direction : | 6 o'clock | ||
| White color Chromaticity : |
|
||
| White Variation : | 1.25/1.33 (Typ./Max.) |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
