Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 154.08×86.58 Mm |
| Outline: | 164.9×100 Mm | Surface: | Antiglare (Haze 25%) |
| High Light: | auo display panel,auo lcd display |
||

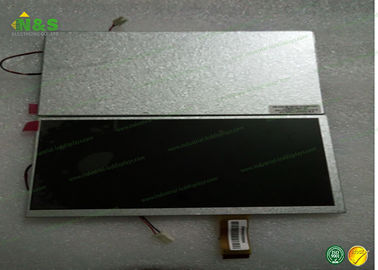

Normally White 7.0 inch AUO LCD Panel A070FW03 V2 AUO 164.9×100 mm for Portable DVD player
A070FW03 V2 Information
| Panel Size : | 7.0 inch | |||||||||||
| Dot Resolution : | 480(RGB)×234 | |||||||||||
| Pixel Configuration : | RGB Vertical Stripe | |||||||||||
| Pixel Density : | 76 PPI | |||||||||||
| Aspect Ratio : | 16:9 (H:V) | |||||||||||
| Form Factor : | Flat Rectangle Display | |||||||||||
| Dot Pitch : | 0.107×0.370 mm (H×V) | |||||||||||
| Pixel Pitch : | 0.321×0.370 mm (H×V) | |||||||||||
| Weight : |
|
|||||||||||
| Surface : | Antiglare (Haze 25%) | |||||||||||
| Active Area : | 154.08×86.58 mm (H×V) | |||||||||||
| Outline Dimension : | 164.9×100 mm (H×V) | |||||||||||
| Outline Depth : | 5.76 (Typ.) mm | |||||||||||
| Landscape or Portrait : | Landscape type | |||||||||||
| Touch Panel : |
|
|||||||||||
| Display Mode : | TN, Normally White, Transmissive | |||||||||||
|
400 cd/m² (Typ.) | |||||||||||
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) | |||||||||||
| Response Time : | 12/18 (Typ.)(Tr/Td) | |||||||||||
| Viewing Angle : | 65/65/40/65 (Typ.)(CR≥10) (L/R/U/D) | |||||||||||
| Viewing Direction : | 6 o'clock | |||||||||||
| Sunlight Readable : | N | |||||||||||
| Lamp Position : |
|
|||||||||||
| Lamp Type : |
|
|||||||||||
| Lamp Amount : | 1 pcs | |||||||||||
| Lamp Life Time : | 10K(Min.) (Hours) | |||||||||||
| Lamp Voltage : | 538/591V (Typ./Max.) | |||||||||||
| Lamp Current : | 6.0/7.0mA (Typ./Max.) | |||||||||||
| Lamp Operating Frequency : | 70/80KHz (Typ./Max.) | |||||||||||
| Lamp Startup Voltage : | 1150/1500V (Max.)(Ta=+25/0℃) | |||||||||||
| Interface Type : |
|
|||||||||||
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
