Product Details:
|
| Resolution: | 480(RGB)×234 | Active Area: | 154.08×86.58 Mm |
|---|---|---|---|
| Outline: | 164.9×100 Mm | ||
| High Light: | auo display panel,auo lcd display |
||

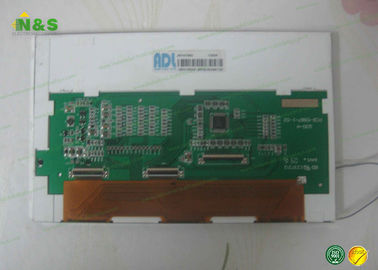

Normally White 7.0 inch AUO LCD Panel A070FW03 V0 AUO 480×234 with 154.08×86.58 mm
A070FW03 V0 Information
| Panel Size : | 7.0 inch | |
| Dot Resolution : | 480(RGB)×234 | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 76 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.107×0.370 mm (H×V) | |
| Pixel Pitch : | 0.321×0.370 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare (Haze 5.5%) | |
| Active Area : | 154.08×86.58 mm (H×V) | |
| Outline Dimension : | 164.9×100 mm (H×V) | |
| Outline Depth : | 5.7 (Typ.) mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
