Product Details:
|
| Resolution: | 1920(RGB)×1080 , FHD | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Brightness: | 250 Cd/m² (Min.) | Surface: | Antiglare (Haze 25%), Hard Coating (3H) |
| Active Area: | 476.64×268.11 Mm | Outline: | 495.6×292.2×11.5 Mm |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) | Frequency: | 60Hz |
| High Light: | auo display panel,auo lcd display |
||

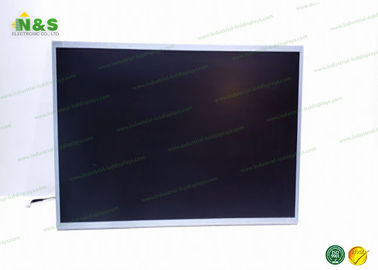

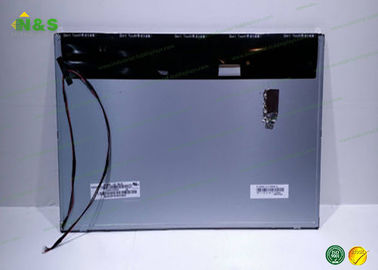

Original 1920*1080 AUO LCD Panel M215HGE-L21 TN, Normally White, Transmissive with 21.5 inch
Features:
· High brightness LCD, resistive touch screen is optional.
· The brightness and contrast can be adjusted manually or automatically, having a power saving mode.
· High-strength aluminum alloy panel, surface oxidation treatment after drawing.
· The overall protection grade IP64, front panel IP65. Dust proof and shockproof.

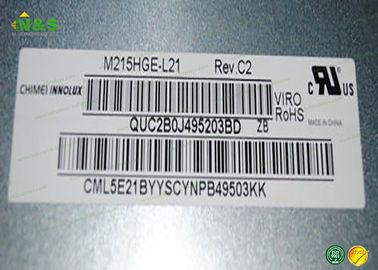

CHIMEI INNOLUX M215HGE-L21 General Features
Panel Brand : CHIMEI INNOLUX
Panel Model : M215HGE-L21 1 Compatible model
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 21.5 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : TN, Normally White, Transmissive
Active Area : 476.64×268.11 mm
Outline : 495.6×292.2×11.5 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 250 cd/m² (Min.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 11S4P WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
21.5", 1920×1080, 8-bit, LVDS, 2D, WLED, Flat, Panel Hot Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color |
| LM215WF4-TLG1 | 21.5" | Panel | 1920×1080 | 250 | 1000:01:00 | WLED | 16.7M |
| T215HVN01.1 | 21.5" | Panel | 1920×1080 | 250 | 3000:01:00 | WLED | 16.7M |
| LM215WF3-SLN1 | 21.5" | Panel | 1920×1080 | 250 | 1000:01:00 | WLED | 16.7M |
| M215HGE-L21 | 21.5" | Panel | 1920×1080 | 250 | 1000:01:00 | WLED | 16.7M |
| M215HNE-L30 | 21.5" | Panel | 1920×1080 | 250 | 3000:01:00 | WLED | 16.7M |
| M215HTN01.1 | 21.5" | Panel | 1920×1080 | 250 | 1000:01:00 | WLED | 16.7M |
| HR215WU1-120 | 21.5" | Panel | 1920×1080 | 250 | 1000:01:00 | WLED | 16.7M |
| MV215FHM-N30 | 21.5" | Panel | 1920×1080 | 250 | 1000:01:00 | WLED | 16.7M |
| HR215WU1-210 | 21.5" | Panel | 1920×1080 | 250 | 1000:01:00 | WLED | 16.7M |
| M215HJJ-L30 Rev.B1 | 21.5" | Panel | 1920×1080 | 250 | 3000:01:00 | WLED | 16.7M |
CHIMEI INNOLUX M215HGE-L21 Mechanical Features
Panel Size : 21.5 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 102 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.08275×0.24825 mm (H×V)
Pixel Pitch : 0.24825×0.24825 mm (H×V)
Weight : 1.91/2.10Kgs (Typ./Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 476.64×268.11 mm (H×V)
Bezel Area : 479.8×271.3 mm (H×V)
Outline Dimension : 495.6×292.2 mm (H×V)
Outline Depth : 8.3/11.5 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on up, down bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
CHIMEI INNOLUX M215HGE-L21 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Min.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
100% Tested Before Shipping.
We mainly sell Industrial LCD panel and touch screen, provides the product information, technical consultation for all kinds of LCD screen and touch screen, We have many stock parts for 3.5-20inches is between the various industrial screen, They are applicable to vehicle, medical equipment, injection molding machine ,industrial equipment etc. Welcome to order.
We sale TFT LCD module for the PDA, GPS, game device and mobile phone and it is one of the largest scale and best after-service company in the area of PDA spare parts.
[Delivery Time]
The LCD Screen Replacements In stock, ship within 1-3 days.
[Quality Guarantee]
100% New and Original
180-365 Days quality warranty
[Payment Opinions]
1. T/T (Wire Transfer)
2. Western Union
3. Moneygram
4. Paypal
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H020HD01 V0 | AUO | 2.0" | 176×220 |
| A020AE01 V0 | AUO | 2.0" | 172×72 |
| A060SE03 V0 | AUO | 6.0" | 600×800 |
| A060XE01 V1 | AUO | 6.0" | 768×1024 |
| A060SE02 V8 | AUO | 6.0" | 800×600 |
| A090XE02 V3 | AUO | 9.0" | 1024×768 |
| A060SE02 VC | AUO | 6.0" | 800×600 |
| A060SE02 V9 | AUO | 6.0" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
