Product Details:
|
| Operating Temperature: | 0 ~ 50 °C | Storage Temperature: | -20 ~ 60 °C |
|---|---|---|---|
| Display Mode: | P-MVA, Normally Black, Transmissive | Model Alias: | M201UN02 V.3 |
| Dot Resolution: | 1600(RGB)×1200 (UXGA) | Aspect Ratio: | 4:3 (H:V) |
| Form Factor: | Flat Rectangle Display | Weight: | 3.00Kgs (Typ.) |
| High Light: | auo display panel,auo lcd display |
||

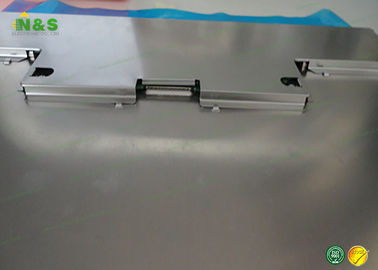

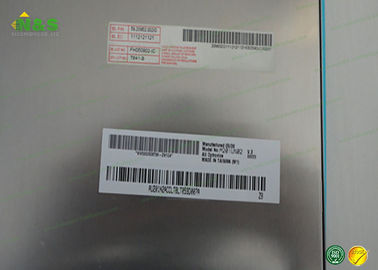

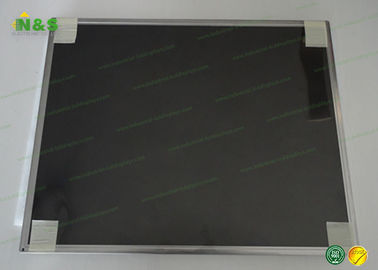

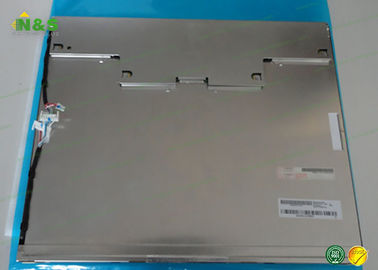

1600*1200 Flat Rectangle Display M201UN02 V3 AUO LCD Panel for20.1 inch without touch
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate
Why Choose our company?
Our LCD module can ensure quantity of sale especial for the Hard-to-find LCD screen replacements.
Reliability test and full examination to ensure the high quality of the display.
Strictly ISO9001 quality management system.
Mature and Professional after-sale service.
Various cooperation experience with big brands, such as AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more other TFT LCD Display brands.
Optical Features
Display Mode : P-MVA, Normally Black, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 15/10 (Typ.)(Tr/Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max.)(9 points)
General Features
| Panel Brand : | AU Optronics |
| Panel Model : | M201UN02 V3 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 20.1 inch |
| Resolution : | 1600(RGB)×1200 , UXGA |
| Display Mode : | P-MVA, Normally Black, Transmissive |
| Active Area : | 408×306 mm |
| Outline : | 432×331.4 mm |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 15/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |

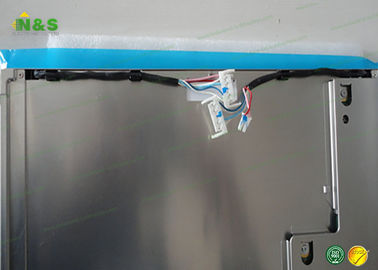

| Lamp Type : | 6 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
AU Optronics M201UN02 V3 Mechanical Features
Panel Size : 20.1 inch
Dot Resolution : 1600(RGB)×1200 (UXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 99 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.085×0.255 mm (H×V)
Pixel Pitch : 0.255×0.255 mm (H×V)
Weight : 3.00Kgs (Typ.)
Active Area : 408×306 mm (H×V)
Bezel Area : 412.0×310.0 mm (H×V)
Outline Dimension : 432×331.4 mm (H×V)
Outline Depth : 23.1 (Typ.) mm
Holes & Brackets : Side mounting holes (8-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
AU Optronics M201UN02 Series Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color |
| M201UN02 V6 | 20.1" | Panel | 1600×1200 | 300 | 1000:01:00 | CCFL | 16.7M |
| M201UN02 V5 | 20.1" | Panel | 1600×1200 | 300 | 1000:01:00 | CCFL | 16.7M |
| M201UN02 V3 | 20.1" | Panel | 1600×1200 | 250 | 700:01:00 | CCFL | 16.7M |
| M201UN02 V2 | 20.1" | Panel | 1600×1200 | 250 | 700:01:00 | CCFL | 16.7M |
| M201UN02 V1 | 20.1" | Panel | 1600×1200 | 250 | 500:01:00 | CCFL | 16.7M |
