Product Details:
|
| Operating Temperature: | 0 ~ 50 °C | Storage Temperature: | -20 ~ 60 °C |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , Panel | Model Alias: | M201UN02 V.6 |
| Pixel Density: | 99 PPI | Aspect Ratio: | 4:3 (H:V) |
| Resolution: | 1600(RGB)×1200 (UXGA) | Weight: | 3.22Kgs (Typ.) |
| High Light: | auo lcd screen,auo lcd display |
||

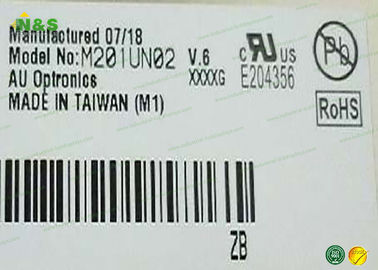

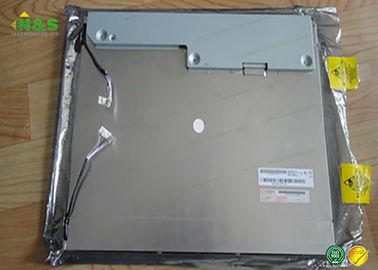

20.1 inch a-Si TFT-LCD , Panel M201UN02 V6 AUO LCD Panel for 300 cd/m² and 3.22Kgs
Features:
1) High range of temperature;
2) LCD Display Grade: 100% New , Grade A+;
3) LVDS Interface and VGA interface
4) High-speed response, Low power consumption
5) Panel Type: TFT
6) Surface Treatment: Haze 25%, Hard coating(3H)
7) Competitive price, offer 1 year of warranty;
8) Original technology support.
9) ISO9001 certification.
AUO M201UN02 V6 Mechanical Features
Panel Size : 20.1 inch
Dot Resolution : 1600(RGB)×1200 (UXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 99 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.085×0.255 mm (H×V)
Pixel Pitch : 0.255×0.255 mm (H×V)
Weight : 3.22Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 408×306 mm (H×V)
Bezel Area : 413.0×311.0 mm (H×V)
Outline Dimension : 432×331.5 mm (H×V)
Outline Depth : 17.9/25.0 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
AUO M201UN02 V6 Optical Features
| Display Mode : | AMVA, Normally Black, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 16 (Typ.)(Tr+Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
AUO M201UN02 V6 General Features
Panel Brand : AUO
Panel Model : M201UN02 V6
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 20.1 inch
Resolution : 1600(RGB)×1200 , UXGA
Display Mode : AMVA, Normally Black, Transmissive
Active Area : 408×306 mm
Outline : 432×331.5×25 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 16 (Typ.)(Tr+Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate
Why Choose our company?
Our LCD module can ensure quantity of sale especial for the Hard-to-find LCD screen replacements.
Reliability test and full examination to ensure the high quality of the display.
Strictly ISO9001 quality management system.
Mature and Professional after-sale service.
Various cooperation experience with big brands, such as AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more other TFT LCD Display brands.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
