Product Details:
|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 19.5 Inch |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Form Facto: | Flat Rectangle Display |
| Surface: | Antiglare, Hard Coating (3H) | Brightness: | 250 Cd/m² (Typ.) |
| Resolution: | 1600(RGB)×900 (HD+) | Weight: | 1.43Kgs (Typ.) |
| High Light: | auo display panel,auo lcd display |
||

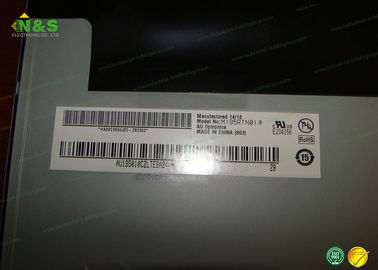

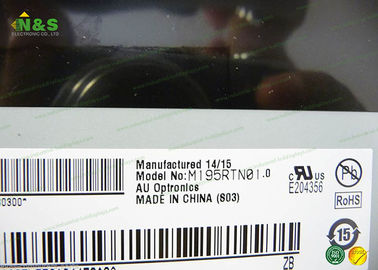

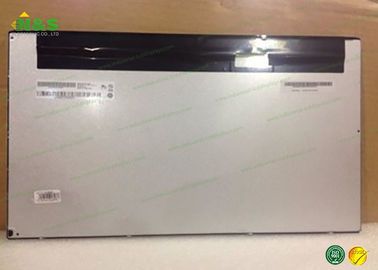

19.5 inch AUO LCD Panel M195RTN01.0 Flat Rectangle Display with 1600*900,1.43Kgs
Why Choose Us?
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in international trade for the LCD display sourcing.
6. Fabulous after-sale service.
7. The brand we could hand for the LCD Panel contained but not limited to AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more other industrial LCD Screen.
AUO M195RTN01.0 Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 3.8/1.2 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max.)(9 points)
AUO M195RTN01.0 Mechanical Features
| Panel Size : | 19.5 inch |
| Dot Resolution : | 1600(RGB)×900 (HD+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 17:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0904×0.2626 mm (H×V) |
| Pixel Pitch : | 0.2712×0.2626 mm (H×V) |
| Weight : | 1.43Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H |
| Active Area : | 433.92×236.34 mm (H×V) |
| Bezel Area : | 437.2×239.6 mm (H×V) |
| Outline Dimension : | 452×263 mm (H×V) |
| Outline Depth : | 7.6/11.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on up, down bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
AUO M195RTN01.0 General Features
Panel Brand : AUO
Panel Model : M195RTN01.0
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 19.5 inch
Resolution : 1600(RGB)×900 , HD+
Display Mode : TN, Normally White, Transmissive
Active Area : 433.92×236.34 mm
Outline : 452×263×11 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%
Response Time : 3.8/1.2 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 10S4P WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
[Shipping & Delivery term]
1. We will ship all your order within 3 working days after receiving your payment. Otherwise, we will state it in the invoice in advance.
2. We can Ship via your shipping account (DHL / FEDEX / UPS / TNT or others) as your instruction. Or Ship via our shipping account (We have good relationship with DHL and FEDEX with very special freight).
3. Regarding the declared value on the package for customs clearance, we are pleased to follow your wishes, just feel free to inform us when ordering.
4. Any import fees or charges are the buyer's responsibility.
[Refund & Replacement]
You will receive a 180-360 days form, fit, and function of part warranty to make sure you receive exactly what you ordered.
If you have any other questions for our LCD panels please feel free to contact us.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
