Product Details:
|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 19.0 Inch |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Panel Brand: | AUO |
| Display Colors: | 16.7M (6-bit + Hi-FRC) , CIE1931 72% | Operating Temperature: | 0 ~ 50 °C |
| Storage Temperature: | -20 ~ 60 °C | Brightness: | 250 Cd/m² (Typ.) |
| Resolution: | 1440(RGB)×900 , WXGA+ | Weight: | 1.45Kgs (Typ.) |
| High Light: | auo display panel,auo lcd screen |
||

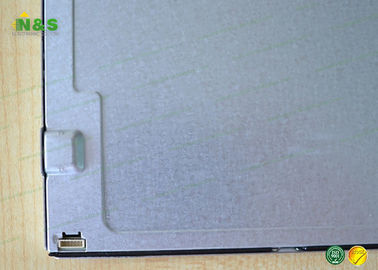

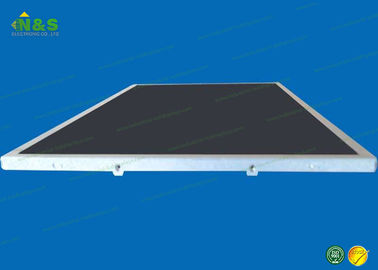

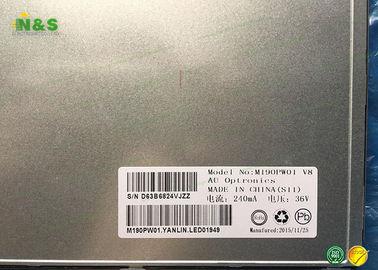

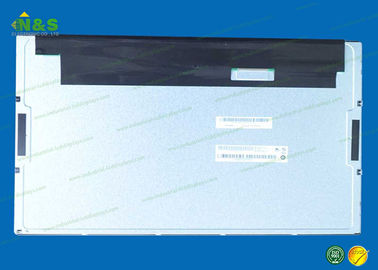

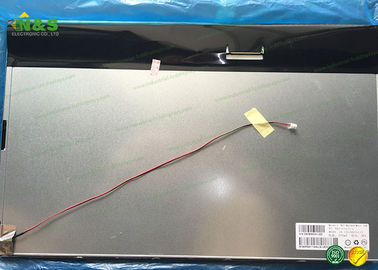

250 cd / m² 1440*900 RGB AUO LCD Panel M190PW01 V8 19.0 inch
Features:
· High brightness LCD, resistive touch screen is optional.
· The brightness and contrast can be adjusted manually or automatically, having a power saving mode.
· High-strength aluminum alloy panel, surface oxidation treatment after drawing.
· The overall protection grade IP64, front panel IP65. Dust proof and shockproof.
100% Tested Before Shipping.
We mainly sell Industrial LCD panel and touch screen, provides the product information, technical consultation for all kinds of LCD screen and touch screen, We have many stock parts for 3.5-20inches is between the various industrial screen, They are applicable to vehicle, medical equipment, injection molding machine ,industrial equipment etc. Welcome to order.
We sale TFT LCD module for the PDA, GPS, game device and mobile phone and it is one of the largest scale and best after-service company in the area of PDA spare parts.
Basic Info:
Panel Brand : AUO
Panel Model : M190PW01 V8
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 19.0 inch
Resolution : 1440(RGB)×900 , WXGA+
Display Mode : TN, Normally White, Transmissive
Active Area : 408.24×255.15 mm
Outline : 428×278×10.8 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%
Response Time : 3.6/1.4 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 13S4P WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
19.0", 1440×900, 8-bit, LVDS, 2D, WLED, Flat, Panel Hot Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color |
| M190PW01 V8 | 19.0" | Panel | 1440×900 | 250 | 1000:01:00 | WLED | 16.7M |
| M190CGE-L20 | 19.0" | Panel | 1440×900 | 250 | 1000:01:00 | WLED | 16.7M |
| M190PW01 V80E | 19.0" | Panel | 1440×900 | 250 | 1000:01:00 | WLED | 16.7M |
| M190CGE-L23 | 19.0" | Panel | 1440×900 | 200 | 600:01:00 | WLED | 16.7M |
| LM190WX2-TLK1 | 19.0" | Panel | 1440×900 | 250 | 1000:01:00 | WLED | 16.7M |
| LM190WX2-TLB1 | 19.0" | Panel | 1440×900 | 250 | 1000:01:00 | WLED | 16.7M |
| MT190AW02 V.4 | 19.0" | Panel | 1440×900 | 250 | 1000:01:00 | WLED | 16.7M |
| M190MWW4 R2 | 19.0" | Panel | 1440×900 | 250 | 1000:01:00 | WLED | 16.7M |
| LTM190BT07 | 19.0" | Panel | 1440×900 | 250 | 1000:01:00 | WLED | 16.7M |
| MT190AW02 V.W | 19.0" | Panel | 1440×900 | 250 | 1000:01:00 | WLED | 16.7M |
AUO M190PW01 V8 Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 3.6/1.4 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max.)(9 points)
AUO M190PW01 V8 Mechanical Features
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1440(RGB)×900 (WXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 89 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0945×0.2835 mm (H×V) |
| Pixel Pitch : | 0.2835×0.2835 mm (H×V) |
| Weight : | 1.45Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 408.24×255.15 mm (H×V) |
| Bezel Area : | 412.24×259.15 mm (H×V) |
| Outline Dimension : | 428×278 mm (H×V) |
| Outline Depth : | 7.7/10.8 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our services:
We thought that every customer is our family member.
2. Best service with help is needed, if you have any problem, the first one you thought for help must be our team
3. Try our best to meet our customers’ requirements.
4. 24 hours online.
5. Check the item one by one before packing.
6. Delivery the product within our promise time.
7. Follow the order all the time, till you sell them successfully without any problem.
8. Solve all the problems after we got complaints from dear customers, no excuse! Because your problem, is ours.
9. Technical support. We have being already made these LCD Screen Panels for about 6 years in the international trade. Our product contained but not limited to Medical LCD display, Aerospace LCD screen, Gaming LCD Panels, Military LCD panels, Kiosk LCD display, Transportation LCD panels, Industrial LCD panels and more.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| A090XE01 V6 | AUO | 9.0" | 1024×768 |
| A090XE01 V5 | AUO | 9.0" | 1024×768 |
| A043SE01 V3 | AUO | 4.3" | 600×800 |
| H283QN00 V6 | AUO | 2.8" | 240×320 |
| M270DAN01.0 CELL | AUO | 27.0" | 2560×1440 |
| H644DAN01.1 | AUO | 6.5" | 1080×1920 |
| B140RTN02.0 CELL | AUO | 14.0" | 1600×900 |
| B156HW03 V0 CELL | AUO | 15.6" | 1920×1080 |
