Product Details:
|
| Dot Resolution: | 1280(RGB)×1024 , SXGA | Panel Size: | 19.0 Inch |
|---|---|---|---|
| Display Mode: | MVA, Normally Black, Transmissive | Pixel Configuration: | RGB Vertical Stripe |
| Pixel Density: | 86 PPI | Dot Pitch: | 0.098×0.294 Mm (H×V) |
| Active Area: | 376.32×301.056 Mm | Brightness: | 300 Cd/m² (Typ.) |
| High Light: | auo display panel,auo lcd display |
||

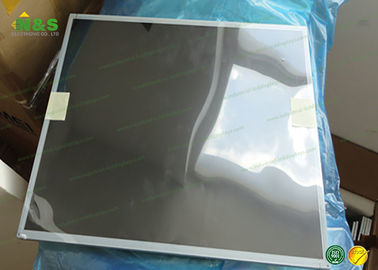

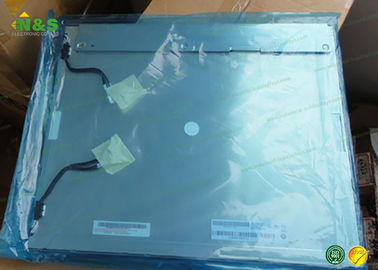

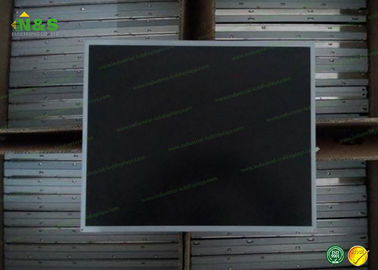

AUO LCD Panel 19.0 inch and 1280*1024 M190EG01 V3 with 300 cd/m²
Product Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
Detailed Product Description:
Panel Size : 19.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 86 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.098×0.294 mm (H×V)
Pixel Pitch : 0.294×0.294 mm (H×V)
Weight : 2.50/2.70Kgs (Typ./Max.)
Active Area : 376.32×301.056 mm (H×V)
Bezel Area : 380.32×305.06 mm (H×V)
Outline Dimension : 396×324 mm (H×V)
Outline Depth : 14.33/17.53 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
AUO M190EG01 V3 Optical Features
| Display Mode : | MVA, Normally Black, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 2000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
AUO M190EG01 V3 Backlight System
| Lamp Position : | Edge light type (Top and Bottom) |
| Lamp Type : | CCFL |
| Lamp Amount : | 4 pcs |
| Lamp Shape : | Straight |
| Lamp Life Time : | 50K(Typ.) (Hours) |
| Lamp Voltage : | 690V (Typ.) |
| Lamp Current : | 7.5/8.0mA (Typ./Max.) |
| Lamp Operating Frequency : | 40/60/80KHz (Min./Typ./Max.) |
| Lamp Startup Voltage : | 1200/1500V (Min.)(Ta=+25/0℃) |
| Lamps Power Consumption : | 20.72/21.44W (Typ./Max.) |
| Interface Type : | Connector |
AUO M190EG01 V3 General Features
Panel Brand : AUO
Panel Model : M190EG01 V3
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 19.0 inch
Resolution : 1280(RGB)×1024 , SXGA
Display Mode : MVA, Normally Black, Transmissive
Active Area : 376.32×301.056 mm
Outline : 396×324×17.53 mm
Surface : Antiglare
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 2000:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 pcs CCFL Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
Features:
· High brightness LCD, resistive touch screen is optional.
· The brightness and contrast can be adjusted manually or automatically, having a power saving mode.
· High-strength aluminum alloy panel, surface oxidation treatment after drawing.
· The overall protection grade IP64, front panel IP65. Dust proof and shockproof.
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| A060SE02 V1 | AUO | 6.0" | 800×600 |
| A090XE01 V6 | AUO | 9.0" | 1024×768 |
| A090XE01 V5 | AUO | 9.0" | 1024×768 |
| A043SE01 V3 | AUO | 4.3" | 600×800 |
| H283QN00 V6 | AUO | 2.8" | 240×320 |
| M270DAN01.0 CELL | AUO | 27.0" | 2560×1440 |
| H644DAN01.1 | AUO | 6.5" | 1080×1920 |
| B140RTN02.0 CELL | AUO | 14.0" | 1600×900 |
