Product Details:
|
| Display Mode: | MVA, Normally Black, Transmissive | Resolution: | 1280(RGB)×1024 (SXGA) |
|---|---|---|---|
| Aspect Ratio: | 5:4 (H:V) | Weight: | 2.50/2.70Kgs (Typ./Max.) |
| Outline Depth: | 14.33/17.53 (Typ./Max.) Mm | Surface: | Antiglare, Hard Coating (3H) |
| Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins | Input Voltage: | 5.0V (Typ.) |
| High Light: | auo lcd screen,auo lcd display |
||

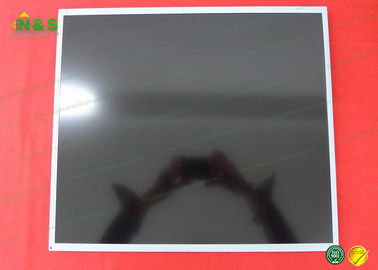

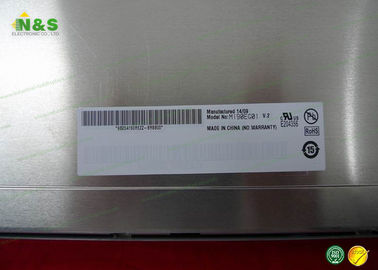

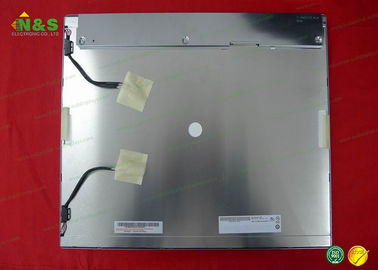

Wholesale and high resolution 1280*1024 AUO LCD Panel M190EG01 V2 with 19.0 inch, 300 cd/m²
Advantages of N&S For the TFT LCD Screen:
AUO M190EG01 V2 General Features
Panel Brand : AUO
Panel Model : M190EG01 V2
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 19.0 inch
Resolution : 1280(RGB)×1024 , SXGA
Display Mode : MVA, Normally Black, Transmissive
Active Area : 376.32×301.056 mm
Outline : 396×324×17.53 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 2000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC)
Response Time : 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz

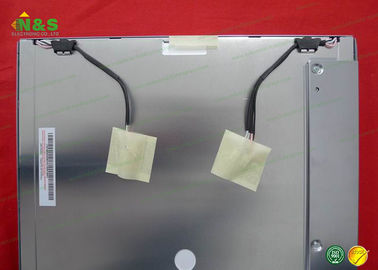

Lamp Type : 4 pcs CCFL Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
19.0", 1280×1024, 8-bit, LVDS, 2D, CCFL, Flat, Panel Hot Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color |
| M190EG01 V2 | 19.0" | Panel | 1280×1024 | 300 | 2000:01:00 | CCFL | 16.7M |
| LM190E05-SL02 | 19.0" | Panel | 1280×1024 | 280 | 600:01:00 | CCFL | 16.7M |
| M190EG01 V3 | 19.0" | Panel | 1280×1024 | 300 | 2000:01:00 | CCFL | 16.7M |
| LM190E05-SL03 | 19.0" | Panel | 1280×1024 | 230 | 800:01:00 | CCFL | 16.7M |
| HSD190MEN3-A00 | 19.0" | Panel | 1280×1024 | 300 | 1000:01:00 | CCFL | 16.7M |
| LTM190E4-L02 | 19.0" | Panel | 1280×1024 | 250 | 1500:01:00 | CCFL | 16.7M |
| M190EG01 V0 | 19.0" | Panel | 1280×1024 | 300 | 1300:01:00 | CCFL | 16.7M |
| LTM190E1-L03 | 19.0" | Panel | 1280×1024 | 250 | 600:01:00 | CCFL | 16.7M |
| A190EN02 V0 | 19.0" | Panel | 1280×1024 | 350 | 1000:01:00 | CCFL | 16.7M |
| HSD190MEN3-A03 | 19.0" | Panel | 1280×1024 | 300 | 1000:01:00 | CCFL | 16.7M |
Other Features
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 2.50/2.70Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 380.32×305.06 mm (H×V) |
| Outline Dimension : | 396×324 mm (H×V) |
| Outline Depth : | 14.33/17.53 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Display Mode : MVA, Normally Black, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 2000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Response Time : 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max.)(9 points)
Why choose us?
1) Products: All of our panels are 100% original and brand new, grade A+, no fake panels exists. Our products are original from AUO, LG, CMO, CPT, SAMSUNG, TOSHIBA, NEC, Hannstar, Mitsubishi and Sharp factory and so on, enjoy a good reputation among our customers in the past 6 years in our LCD panels international trade.
2) Stock: Mass stock for EOL & Hard-to-find LCD panel models with Competitive price. What is more, small order for LCD display are welcome here. .
3) Warranty: Provide 1 year of warranty, we will replace the defective LCD displays for you if it is of our party’s fault.
4) Various payment Terms: T/T, Western Union, PayPal etc.
5) Quick Delivery: As we have huge stock, orders only takes 1-3 working days after received the payment. And there are various Express supported, we also have competitive freight fee from DHL/UPS/EMS/FedEx/TNT Express companies.
6) Package: Strict package, all the products are in original package from original factory, and all the packages have labels and serial number from original factory.
