Product Details:
|
| Display Mode: | P-MVA, Normally Black, Transmissive | Resolution: | 1280(RGB)×1024 , SXGA |
|---|---|---|---|
| Active Area: | 376.32×301.056 Mm | Weight: | 2.50/2.70Kgs (Typ./Max.) |
| Outline Depth: | 14.33/17.5 (Typ./Max.) Mm | Surface: | Antiglare, Hard Coating (3H) |
| Dot Pitch: | 0.098×0.294 Mm (H×V) | Pixel Pitch: | 0.294×0.294 Mm (H×V) |
| High Light: | auo display panel,auo lcd display |
||

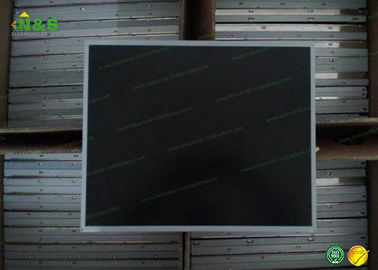

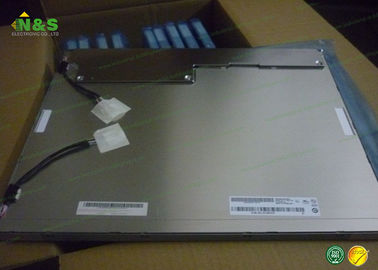

AUO LCD Panel 19.0 inch and 300 cd/m² M190EG01 V0 for1280*1024,without touchh
We still have other LCD panel models and more in stock:
Sizes: 7.0, 8.9", 9.7", 10.0", 10.1", 10.2", 10.4", 11.1", 11.6", 12.1", 12.5", 13.1", 13.3", 14.0", 14.1", 14.5", 15.0" 15.4", 15.6", 16.0", 16.4", 17.0", 17.1", 17.3", 18.4"
Resolutions: XGA, WXGA, WXGA HD, , WXGA+, WXGA++, WSVGA, WUXGA, WUXGA+, WUXGA++, Full-HD
Backlight technologies: LED, SLIM LED, 1 CCFL, 2 CCFL
Brands: NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE and more.
19.0", 1280×1024, 8-bit, LVDS, 2D, CCFL, Flat, Panel Hot Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color |
| M190EG01 V2 | 19.0" | Panel | 1280×1024 | 300 | 2000:01:00 | CCFL | 16.7M |
| LM190E05-SL02 | 19.0" | Panel | 1280×1024 | 280 | 600:01:00 | CCFL | 16.7M |
| M190EG01 V3 | 19.0" | Panel | 1280×1024 | 300 | 2000:01:00 | CCFL | 16.7M |
| LM190E05-SL03 | 19.0" | Panel | 1280×1024 | 230 | 800:01:00 | CCFL | 16.7M |
| HSD190MEN3-A00 | 19.0" | Panel | 1280×1024 | 300 | 1000:01:00 | CCFL | 16.7M |
| LTM190E4-L02 | 19.0" | Panel | 1280×1024 | 250 | 1500:01:00 | CCFL | 16.7M |
| M190EG01 V0 | 19.0" | Panel | 1280×1024 | 300 | 1300:01:00 | CCFL | 16.7M |
| LTM190E1-L03 | 19.0" | Panel | 1280×1024 | 250 | 600:01:00 | CCFL | 16.7M |
| A190EN02 V0 | 19.0" | Panel | 1280×1024 | 350 | 1000:01:00 | CCFL | 16.7M |
| HSD190MEN3-A03 | 19.0" | Panel | 1280×1024 | 300 | 1000:01:00 | CCFL | 16.7M |
Basic Info:
Panel Brand : AUO
Panel Model : M190EG01 V0
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 19.0 inch
Resolution : 1280(RGB)×1024 , SXGA
Display Mode : P-MVA, Normally Black, Transmissive
Active Area : 376.32×301.056 mm
Outline : 396×324×17.5 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 1300:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 pcs CCFL Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
Mechanical Features
Panel Size : 19.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 86 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.098×0.294 mm (H×V)
Pixel Pitch : 0.294×0.294 mm (H×V)
Weight : 2.50/2.70Kgs (Typ./Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 376.32×301.056 mm (H×V)
Bezel Area : 380.32×305.06 mm (H×V)
Outline Dimension : 396×324 mm (H×V)
Outline Depth : 14.33/17.5 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
MORE DETAILS :
| Display Mode : | P-MVA, Normally Black, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1300 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
