Product Details:
|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 17.0 Inch |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Brightness: | 300 Cd/m² (Typ.) |
| Outline Depth: | 17.0±0.5 Mm | Weight: | 2.00Kgs (Max.) |
| Form Factor: | Flat Rectangle Display | Dot Resolution: | 1280(RGB)×1024 , SXGA |
| Aspect Ratio: | 5:4 (H:V) | Touch Panel: | Without |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

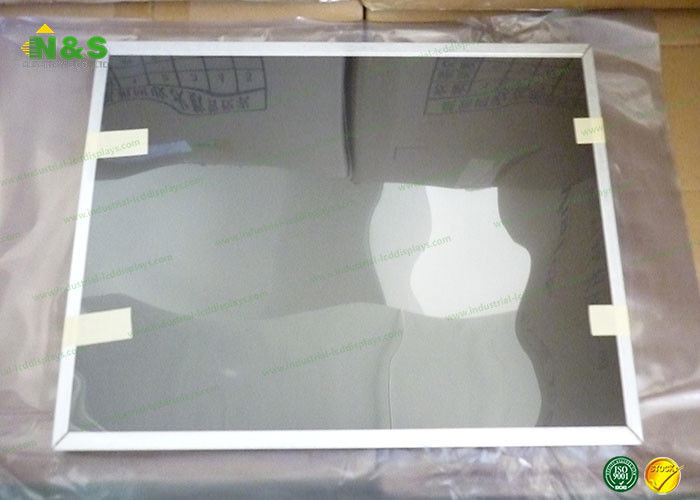

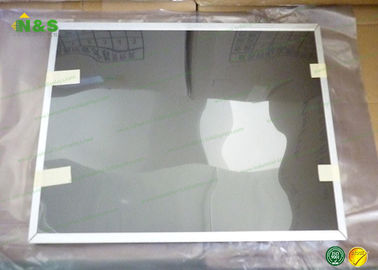

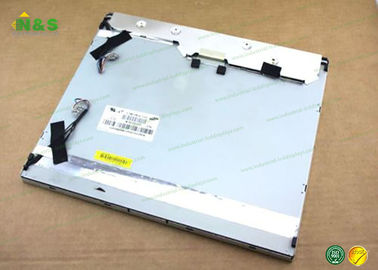

17.0 inch Samsung LCD Panel LTM170EU-L31 TN, Normally White, Transmissive for 1280*1024
17.0", 1280×1024, 8-bit, LVDS, 2D, CCFL, Flat, Panel Hot Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color |
| M170ETN01.0 | 17.0" | Panel | 1280×1024 | 250 | 1000:01:00 | CCFL | 16.7M |
| LTM170EX-L31 | 17.0" | Panel | 1280×1024 | 300 | 1000:01:00 | CCFL | 16.7M |
| LTM170E8-L01 | 17.0" | Panel | 1280×1024 | 280 | 1500:01:00 | CCFL | 16.7M |
| M170EG01 VD | 17.0" | Panel | 1280×1024 | 300 | 1000:01:00 | CCFL | 16.2M |
| LM170E03-TLJ1 | 17.0" | Panel | 1280×1024 | 250 | 1000:01:00 | CCFL | 16.7M |
| G170EG01 V0 | 17.0" | Panel | 1280×1024 | 380 | 1000:01:00 | CCFL | 16.7M |
| LTM170ET01 | 17.0" | Panel | 1280×1024 | 250 | 1000:01:00 | CCFL | 16.7M |
| LM170E03-TLG1 | 17.0" | Panel | 1280×1024 | 300 | 800:01:00 | CCFL | 16.7M |
| M170EG01 VA | 17.0" | Panel | 1280×1024 | 300 | 700:01:00 | CCFL | 16.2M |
| LTM170EU-L31 | 17.0" | Panel | 1280×1024 | 300 | 1000:01:00 | CCFL | 16.7M |
SAMSUNG LTM170EU-L31 General Features
Panel Brand : SAMSUNG

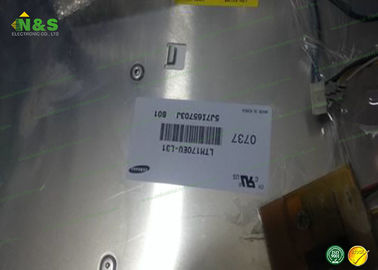

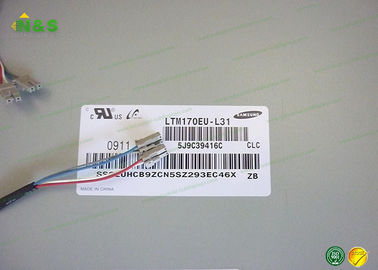

Panel Model : LTM170EU-L31
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 17.0 inch
Resolution : 1280(RGB)×1024 , SXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 337.92×270.336 mm
Outline : 358.5×296.5×17.5 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%
Response Time : 1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 pcs CCFL Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
Mechanical Features
Panel Size : 17.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 2.00Kgs (Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 337.92×270.336 mm (H×V)
Bezel Area : 341.6×274.0 mm (H×V)
Outline Dimension : 358.5×296.5 mm (H×V)
Outline Depth : 17.0±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
