Product Details:
|
| Dot Resolution: | 1280(RGB)×1024 , SXGA | Panel Size: | 17.0 Inch |
|---|---|---|---|
| Display Mode: | PVA, Normally Black, Transmissive | Brightness: | 250 Cd/m² (Typ.) |
| Aspect Ratio: | 5:4 (H:V) | Panel Brand: | SAMSUNG |
| Form Factor: | Flat Rectangle Display | Contrast Ratio: | 1000:1 (Typ.) |
| High Light: | samsung lcd screen,samsung lcd display panel |
||

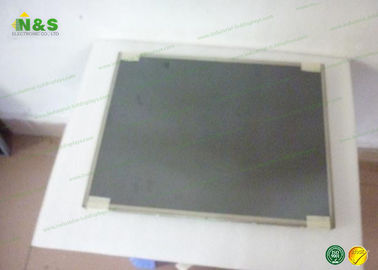

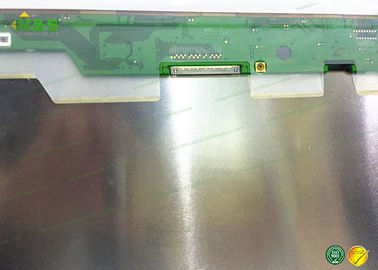

Original 1280*1024 LTM170E8-L02 samsung computer monitors 17.0 inch high resolution
Features
| Panel Brand : | SAMSUNG |

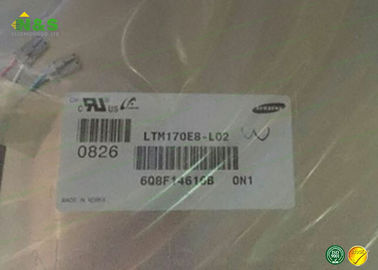

| Panel Model : | LTM170E8-L02 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 17.0 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | PVA, Normally Black, Transmissive |
| Active Area : | 337.92×270.336 mm |
| Outline : | 354.9×290.3×13.3 mm |
| Surface : | Antiglare (Haze 44%), Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 15/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS465GS47 | Samsung | 4.7" | 720×1280 |
| AMS477GV11 | Samsung | 4.8" | 720×1280 |
| AMS499QP59 | Samsung | 5.0" | 1080×1920 |
| AMS499QP53 | Samsung | 5.0" | 1080×1920 |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Panel Size : 17.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 1.70Kgs (Max.)
Surface : Antiglare (Haze 44%), Hard coating (3H)
Active Area : 337.92×270.336 mm (H×V)
Bezel Area : 340.92×273.336 mm (H×V)
Outline Dimension : 354.9×290.3 mm (H×V)
Outline Depth : 12.8±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
SAMSUNG LTM170E8-L02 Optical Features
Display Mode : PVA, Normally Black, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 15/10 (Typ.)(Tr/Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33 (Max.)(9 points)
