Product Details:
|
| Dot Resolution: | 1024(RGB)×768 , XGA | Panel Size: | 15.0 Inch |
|---|---|---|---|
| Response Time: | 5/20 (Typ.)(Tr/Td) | Brightness: | 250 Cd/m² (Typ.) |
| Aspect Ratio: | 4:3 (H:V) | Panel Brand: | SAMSUNG |
| Form Factor: | Flat Rectangle Display | Frequency: | 60Hz |
| High Light: | samsung lcd screen,samsung lcd display panel |
||
250 cd / m² LTM150XI - A01 samsung lcd screen 15.0 inch 60 Frequency
[Shipping & Delivery term]
1. We will ship all your order within 3 working days after receiving your payment. Otherwise, we will state it in the invoice in advance.
2. We can Ship via your shipping account (DHL / FEDEX / UPS / TNT or others) as your instruction. Or Ship via our shipping account (We have good relationship with DHL and FEDEX with very special freight)
General Features
Panel Brand : SAMSUNG
Panel Model : LTM150XI-A01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 15.0 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : TN, Normally White, Transmissive
Active Area : 304.1×228.1 mm
Outline : 331.6×255.3×18 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 300:1 (Typ.)
Display Colors : 16.2M (6-bit + FRC) , CIE1931 65%
Response Time : 5/20 (Typ.)(Tr/Td)
Viewing Angle : 65/65/50/60 (Min.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 pcs CCFL Embedded (Inverter)
Signal Interface : Analog RGB , 27 pins
Mechanical Features
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.80Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 304.1×228.1 mm (H×V) |
| Bezel Area : | 307.4×231.3 mm (H×V) |
| Outline Dimension : | 331.6×255.3 mm (H×V) |
| Outline Depth : | 18.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (8-M3) on left, right bezel,Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + FRC) |
| Color Gamut : | 65% NTSC (CIE1931) |
| Response Time : | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/50/60 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
Questions & Answers:
Q1: How can you trust us?
- We are a professional team for the LCD panel international trade already for 6 years. We own the more professional & more competitive sourcing line & agency for the LCD Screen panels.
Q2: When can I get the update price?
- Within 24 hours after we get your inquiry.
Q3: What is your product capacity per day?
- 500-1000 pcs/day. We test each pcs LCD panels before shipment.
Q4: What is the payment term?
- T/T, Western Union, MoneyGram, PayPal.
SAMSUNG LTM150XI-A01 Backlight System
Lamp Position : Edge light type (Top and Bottom)
Lamp Type : CCFL
Lamp Amount : 4 pcs
Lamp Shape : Straight
Lamp Replaceable : Replaceable
Lamp Driver Board : Embedded (Inverter)
Lamp Driver Board : 12.0V (Typ.)
SAMSUNG LTM150XI Series Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R |
| LTM150XI-V01 | 15.0" | Panel | 1024×768 | 250 | 300:1 |
| LTM150XI-T01 | 15.0" | Panel | 1024×768 | ||
| LTM150XI-P01 | 15.0" | Panel | 1024×768 | ||
| LTM150XI-L01 | 15.0" | Panel | 1024×768 | ||
| LTM150XI-A03 | 15.0" | Panel | 1024×768 | ||
| LTM150XI-A02 | 15.0" | Panel | 1024×768 | ||
| LTM150XI-A01 | 15.0" | Panel | 1024×768 | 250 | 300:1 |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| AMS397GE61-1 | Samsung | 4.0" | 480×800 |
| AMS427GL41-0 | Samsung | 4.3" | 480×800 |
| AMS427GL45-0 | Samsung | 4.3" | 480×800 |
| AMS767KC04-1 | Samsung | 7.7" | 1280×800 |
| AMS395GB04 | Samsung | 4.0" | 360×640 |
| AMS410GC01-0 | Samsung | 4.1" | 480×800 |
| AMS370FG | Samsung | 3.7" | 480×800 |
| AMS465GS16-1 | Samsung | 4.7" | 720×1280 |
| AMS427GL34-1 | Samsung | 4.3" | 480×800 |

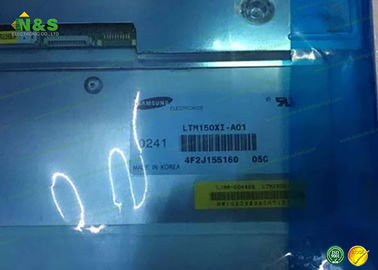

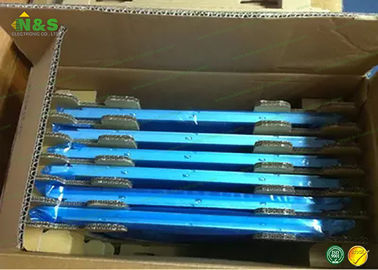

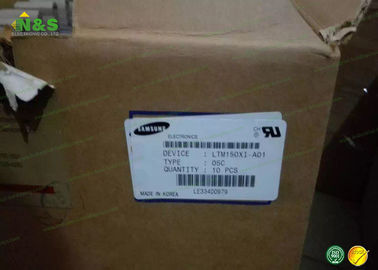

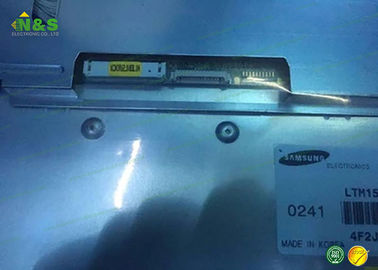

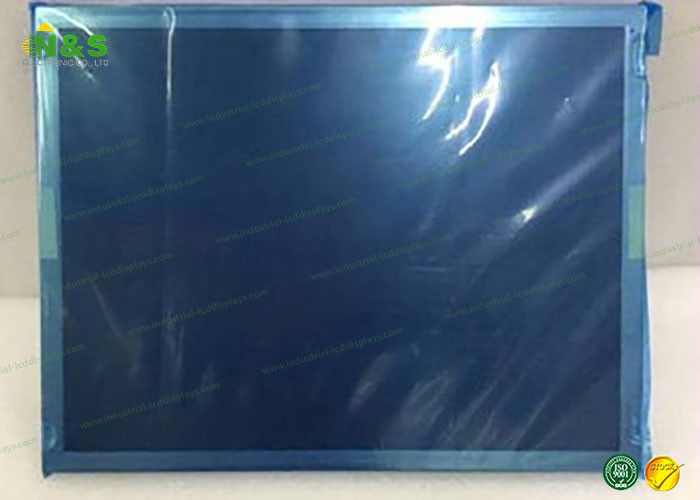

Details Pictures
