Product Details:
|
| Dot Resolution: | 1024(RGB)×768 , XGA | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Contrast Ratio: | 250:1 (Typ.) | Display Mode: | TN, Normally White, Transmissive |
| Display Colors: | 262K (6-bit) | Pixel Pitch: | 0.2055×0.2055 Mm (H×V) |
| Form Factor: | Flat Rectangle Display | Brightness: | 150 Cd/m² (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||
Original LTM10C313U industrial grade touch screen monitor high resolution
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.

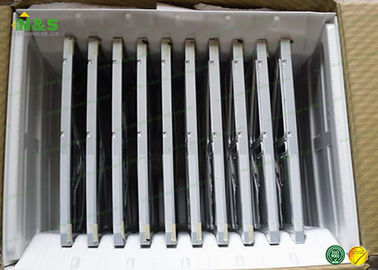

5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LT065AC57400 | TOSHIBA | 6.5" | 640×480 |
| LT065AC57000 | TOSHIBA | 6.5" | 640×480 |
| LT057AC47200 | TOSHIBA | 5.7" | 640×480 |
| LT057AC47100 | TOSHIBA | 5.7" | 640×480 |
| LT057AA34E00 | TOSHIBA | 5.7" | 320×240 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk

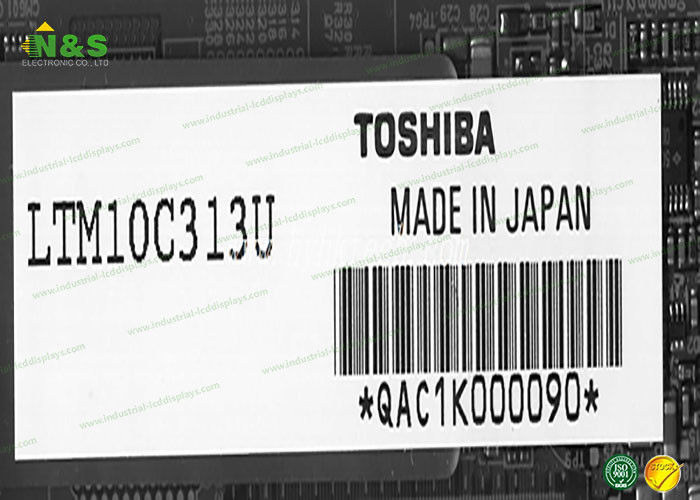

TOSHIBA LTM10C313U General Features
Panel Brand : TOSHIBA
Panel Model : LTM10C313U
Panel Type : LTPS TFT-LCD , Panel
Panel Size : 10.4 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : TN, Normally White, Transmissive
Active Area : 210.432×157.824 mm
Outline : 238.6×173.2×5.7 mm
Brightness : 150 cd/m² (Typ.)
Contrast Ratio : 250:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 50/50 (Max.)(Tr/Td)
Frequency : 60Hz
Lamp Type : 1 pcs CCFL Without Driver
Signal Interface : LVDS (1 ch, 6-bit) , 14 pins
Input Voltage : 3.3V (Typ.)
TOSHIBA LTM10C313U Mechanical Features
| Panel Size : | 10.4 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 123 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) |
| Weight : | 270g (Typ.) |
| Active Area : | 210.432×157.824 mm (H×V) |
| Bezel Area : | 217.2×164.7 mm (H×V) |
| Outline Dimension : | 238.6×173.2 mm (H×V) |
| Outline Depth : | 5.7 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
TOSHIBA LTM10C313U Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 150 cd/m² (Typ.)
Contrast Ratio : 250 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 50/50 (Max.)(Tr/Td)
Our guarantee:
(1) Our all LCD screen will be strictly tested pcs by pcs and shipped with professional & safe package.
(2) We have 12 months warranty for each LCD display, depend on the different items.
(3) We will do our best to solve any possible problem of our LCD panels for your after sale. Please contact with us if any needs.
