Product Details:
|
| Contrast Ratio: | 400 : 1 (Typ.) | Display Colors: | 16.7M (8-bit) |
|---|---|---|---|
| Response Time: | 5/25 (Typ.)(Tr/Td) | Panel Model: | LTE430WQ-F07 |
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 4.3 Inch |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||
4.3 inch Normally White Samsung LCD Screen LTE430WQ-F07 with 105.5*67.2*4.15 mm
We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.
| Panel Brand : | SAMSUNG |
| Panel Model : | LTE430WQ-F07 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 4.3 inch |
| Resolution : | 480×272(RGB) , WQVGA |
| Display Mode : | TN, Normally White, TMR |
| Active Area : | 95.04×53.856 mm |
| Outline : | 105.5×67.2×4.15 mm |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 5/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 7S1P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.)(VDD) |
The reasons you choose us
1).More competitive price! As aprofessional LCD Distributor,we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee,100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time,so we could promise save much more money on the shipping cost and betterservice is offered!
5).Best sale-service!Professional team to service with you before sale, on sale & after service.
| Panel Size : | 4.3 inch |
| Dot Resolution : | 480×272(RGB) (WQVGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.198×0.066 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 60.5g (Typ.) |
| Active Area : | 95.04×53.856 mm (H×V) |
| Bezel Area : | 98.7×57.5 mm (H×V) |
| Outline Dimension : | 105.5×67.2 mm (H×V) |
| Outline Depth : | 3.95±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |
| AMS568AT01 | Samsung | 5.7" | 1440×2560 |
| AMS840CS04 | Samsung | 8.4" | 1600×2560 |
| AMS520BQ04-0 | Samsung | 5.2" | 1080×1920 |
| AMS309PW01-0 | Samsung | 3.1" | 720×720 |
| AMS465GS45 | Samsung | 4.7" | 720×1280 |
| AMS477GV07 | Samsung | 4.8" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

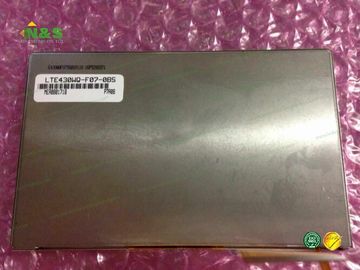

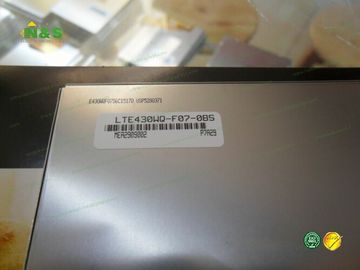

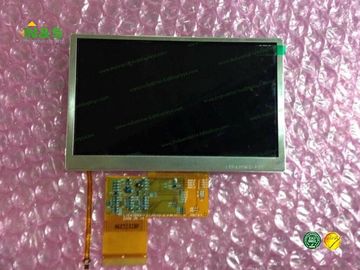

Details Pictures for Samsung LCD Screen LTE430WQ-F07
