Product Details:
|
| Outline: | 117.9×72.5×7.7 Mm | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD , Panel | Active Area: | 80.64×60.48 Mm |
| Response Time: | 50/50 (Max.)(Tr/Td) | Panel Size: | 4.0 Inch |
| Brightness: | 130 Cd/m² (Typ.) | Panel Brand: | TOSHIBA |
| High Light: | industrial touch screen display,industrial lcd screen |
||

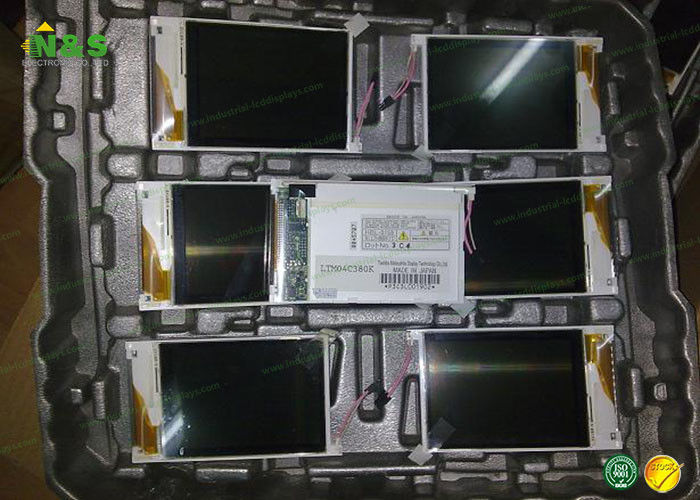

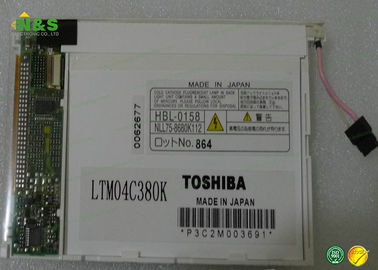

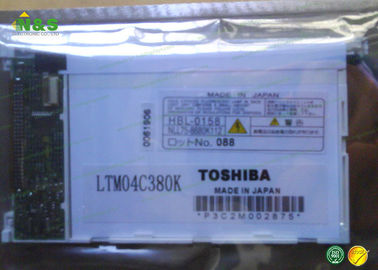

TOSHIBA LTM04C380K Industrial LCD Displays without touch , resolution 640*480
Features:
1) High range of temperature;
2) LCD Display Grade: 100% New , Grade A+;
3) LVDS Interface and VGA interface
4) High-speed response, Low power consumption
5) Panel Type: TFT
6) Surface Treatment: Haze 25%, Hard coating(3H)
7) Competitive price, offer 1 year of warranty;
8) Original technology support.
9) ISO9001 certification.
General Features
Panel Brand : TOSHIBA
Panel Model : LTM04C380K
Panel Type : LTPS TFT-LCD , Panel
Panel Size : 4.0 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 80.64×60.48 mm
Outline : 117.9×72.5×7.7 mm
Brightness : 130 cd/m² (Typ.)
Contrast Ratio : 250:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 50/50 (Max.)(Tr/Td)
Lamp Type : 1 pcs CCFL Without Driver
Signal Interface : Parallel RGB (1 ch, 6-bit) , 27 pins
Input Voltage : 3.3V (Typ.)(VDD)
Product details:
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 130 cd/m² (Typ.) |
| Contrast Ratio : | 250 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 50/50 (Max.)(Tr/Td) |
| Lamp Position : | Edge light type (Bottom side) |
| Lamp Type : | CCFL |
| Lamp Amount : | 1 pcs |
| Lamp Shape : | Straight |
| Lamp Voltage : | 325V (Typ.) |
| Lamp Current : | 1.5/2.0/3.0mA (Min./Typ./Max.) |
| Lamp Startup Voltage : | 750V (Min.)(Ta=0℃) |
| Interface Type : | Connector |
Basic Info:
Panel Size : 4.0 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 201 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.042×0.126 mm (H×V)
Pixel Pitch : 0.126×0.126 mm (H×V)
Weight : 56g (Typ.)
Active Area : 80.64×60.48 mm (H×V)
Outline Dimension : 117.9×72.5 mm (H×V)
Outline Depth : 6.7/7.7 (Typ./Max.) mm
Landscape or Portrait : Landscape type
Touch Panel : Without
