Product Details:
|
| Panel Brand: | SAMSUNG | Resolution: | 480(RGB)×234 |
|---|---|---|---|
| Aspect Ratio: | 16:10 (H:V) | Contrast Ratio: | 300:1 (Typ.) |
| Response Time: | 10/30 (Typ.)(Tr/Td) | Panel Size: | 7.0 Inch |
| High Light: | industrial touch screen display,industrial lcd panel |
||

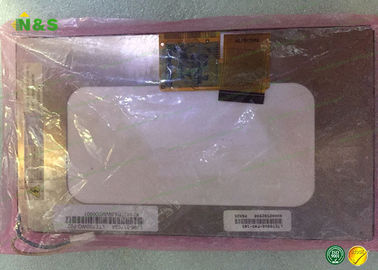

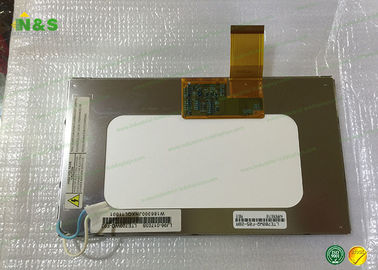

New and Original SAMSUNG LTE700WQ-F02 with7.0 inch, 480*234 TN, Normally White, Transmissive
Mechanical Features
Panel Size : 7.0 inch
Dot Resolution : 480(RGB)×234
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.107×0.370 mm (H×V)
Pixel Pitch : 0.321×0.370 mm (H×V)
Weight : 169g (Max.)
Active Area : 154.08×86.58 mm (H×V)
Bezel Area : 157.3×90.33 mm (H×V)
Outline Dimension : 166×100 mm (H×V)
Outline Depth : 5.7±0.3 mm
Landscape or Portrait : Landscape type
Touch Panel : Without
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
| F04307-06Z | Innolux | 4.3" | 480×800 |
| CG043JN16 | Innolux | 4.3" | 480×800 |
| F04008-01U | Innolux | 4.0" |
480×800
|
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Response Time : | 10/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
General Features
| Panel Brand : | SAMSUNG |

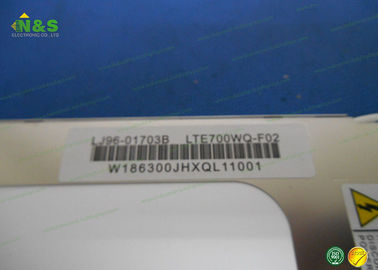

| Panel Model : | LTE700WQ-F02 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 480(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 154.08×86.58 mm |
| Outline : | 166×100 mm |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Response Time : | 10/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |

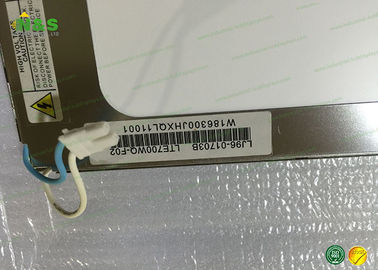

| Lamp Type : | 1 pcs CCFL Without Driver |

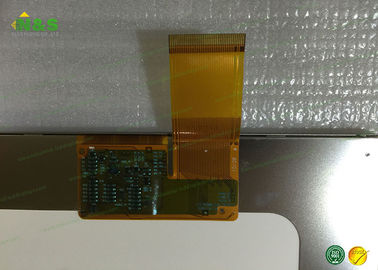

| Signal Interface : | TFT Specific Analog RGB , 30 pins |
| Input Voltage : | 3.3/5.0/17/-13V (Typ.)(VCC/AVDD/VGG/VEE) |
