Product Details:
|
Panel Size: | 12.1 Inch | Resolution: | 1280(RGB)×800 , WXGA |
---|---|---|---|
Operating Temperature: | 0~ 50 °C | Storage Temperature: | -20 ~ 60 °C |
Brightness: | 200cd/m² (Typ.) | Pixel Configuration: | RGB Vertical Stripe |
Active Area: | 261.12×163.2 Mm | Outline: | 275.8×178×5.5 Mm |
High Light: | industrial touch screen display,industrial lcd screen |

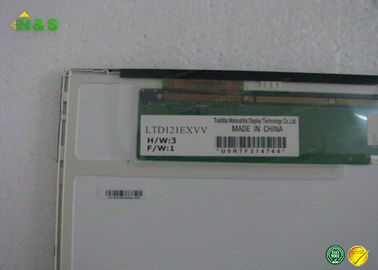

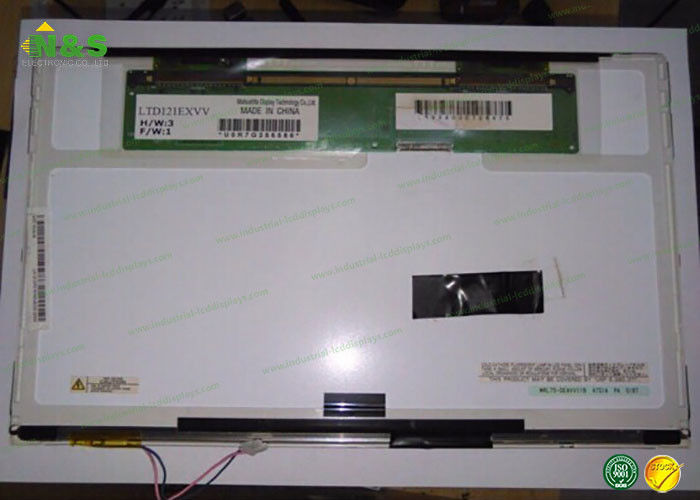

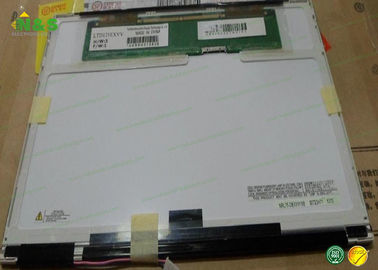

High resolution 1280*768 LTD121EXVV with 12.1 inch Flat Rectangle Display
Toshiba Matsushita LTD121EXVV Mechanical Features
Panel Size : 12.1 inch
Dot Resolution : 1280(RGB)×800 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 124 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.068×0.204 mm (H×V)
Pixel Pitch : 0.204×0.204 mm (H×V)
Weight : 315g (Typ.)
Surface : Glare (Haze 0%), Hard coating (3H)
Active Area : 261.12×163.2 mm (H×V)
Bezel Area : 264.6×166.6 mm (H×V)
Outline Dimension : 275.8×178 mm (H×V)
Outline Depth : 5.5 (Max.) mm
Holes & Brackets : Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
Toshiba Matsushita LTD121EXVV Optical Features
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 200 cd/m² (Typ.) |
Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
Display Color : | 262K (6-bit) |
Response Time : | 50 (Typ.)(Tr+Td) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.315; Wy:0.330 |
Toshiba Matsushita LTD121EXVV General Features
Panel Brand : | Toshiba Matsushita |
Panel Model : | LTD121EXVV |
Panel Type : | LTPS TFT-LCD , Panel |
Panel Size : | 12.1 inch |
Resolution : | 1280(RGB)×800 , WXGA |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 261.12×163.2 mm |
Outline : | 275.8×178×5.5 mm |
Surface : | Glare (Haze 0%), Hard coating (3H) |
Brightness : | 200 cd/m² (Typ.) |
Contrast Ratio : | 600:1 (Typ.) |
Display Colors : | 262K (6-bit) |
Response Time : | 50 (Typ.)(Tr+Td) |
Frequency : | 60Hz |
Lamp Type : | 1 pcs CCFL Without Driver |
Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
Input Voltage : | 3.3V (Typ.) |
Matsushita LTD121EXVV Backlight System
Lamp Position : Edge light type (Bottom side)
Lamp Type : CCFL
Lamp Amount : 1 pcs [8S6P: 8 Serial, 6 Parallel]
Lamp Shape : Straight
Lamp Voltage : 630±50V
Lamp Current : 2.0/6.0mA (Min./Max.)
Lamp Operating Frequency : 50/50/80KHz (Min./Typ./Max.)
Lamp Startup Voltage : 1500/1800V (Min./Max.)(Ta=0℃)
Interface Type : Connector
Toshiba Matsushita LTD121EXVV Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 50 (Typ.)(Tr+Td)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.315; Wy:0.330
[Delivery Time]
The LCD Screen Replacements In stock, ship within 1-3 days.
[Quality Guarantee]
100% New and Original
180-365 Days quality warranty
[Payment Opinions]
1. T/T (Wire Transfer)
2. Western Union
3. Moneygram
4. Paypal
Our advantages
1. Your reply will be replied within 24 hours.
2. Good service whenever.
3. OEM service
4. No MOQ request.
5. Quick delivery: 1-3 working days
6. Each LCD panel will be tested pcs by pcs by our professional testing team.
7. One Year warranty for our LCD Screen Displays.
Questions & Answers:
Q1: How can you trust us?
- We are a professional team for the LCD panel international trade already for 6 years. We own the more professional & more competitive sourcing line & agency for the LCD Screen panels.
Q2: When can I get the update price?
- Within 24 hours after we get your inquiry.
Q3: What is your product capacity per day?
- 500-1000 pcs/day. We test each pcs LCD panels before shipment.
Q4: What is the payment term?
- T/T, Western Union, MoneyGram, PayPal.
Q6: Do you offer after-sale service?
- Yes, we do. We have strict QC system to make sure within our guarantee period(12 months), please contact us ASAP if there is any question, we will try our best to resolve it.
Q7: Which brands' LCD panel replacements could we handle?
- Our LCD screen panels contained but not limited to AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more brand for the industrial TFT LCD module.
Q8: Do you provide samples?
- Yes, we are glad to offer you our samples for checking quality. If you are interested in some of our products, please feel free to contact us for more details.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
ED060SC3 | E Ink | 6.0" | 800×600 |
ED050SC1 | E Ink | 5.0" | 800×600 |
PD035QX7 | E Ink | 3.5" | 320×240 |
PW070DS6 | E Ink | 7.0" | 480×234 |
P1924QC1 | E Ink | 2.4" | 240×320 |
