Product Details:
|
| Panel Size: | 11.1 Inch | Resolution: | 1366(RGB)×768 , WXGA |
|---|---|---|---|
| Panel Brand: | Toshiba Matsushita | Display Colors: | 262K (6-bit) |
| Signal Interface: | LVDS (1 Ch, 6-bit) | Operating Temperature: | 0 ~ 50 °C |
| High Light: | industrial lcd screen,industrial lcd panel |
||

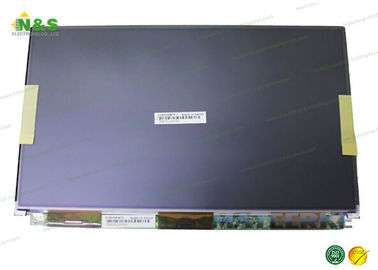

Flat Rectangle Industrial LCD Displays , 11.1 inch Original tft lcd monitor LTD111EXCY
General Features
Panel Brand : Toshiba Matsushita
Panel Model : LTD111EXCY
Panel Type : LTPS TFT-LCD , Panel
Panel Size : 11.1 inch
Resolution : 1366(RGB)×768 , WXGA
Active Area : 245.88×138.24 m
Display Colors : 262K (6-bit)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : LVDS (1 ch, 6-bit)
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
| F04307-06Z | Innolux | 4.3" | 480×800 |
| CG043JN16 | Innolux | 4.3" | 480×800 |
| F04008-01U | Innolux | 4.0" | 480×800 |
| N156BGE-P21 | Innolux | 15.6" | 1366×768 |
| F04801-01Z | Innolux | 4.8" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Mechanical Features
| Panel Size : | 11.1 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.060×0.180 mm (H×V) |
| Pixel Pitch : | 0.180×0.180 mm (H×V) |
| Active Area : | 245.88×138.24 mm (H×V) |
| Landscape or Portrait : | Landscape type |
Toshiba Matsushita LTD111EX Series Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight |
| LTD111EXDS | 11.1" | Panel | 1366×768 | WLED | ||
| LTD111EXDA | 11.1" | Panel | 1366×768 | 200 | 600:01:00 | CCFL |
| LTD111EXCZ | 11.1" | Panel | 1366×768 | WLED | ||
| LTD111EXCY | 11.1" | Panel | 1366×768 | WLED | ||
| LTD111EXCX | 11.1" | Panel | 1366×768 | WLED | ||
| LTD111EXCS | 11.1" | Panel | 1366×768 | WLED | ||
| LTD111EXCK | 11.1" | Panel | 1366×768 | WLED | ||
| LTD111EXCA | 11.1" | Panel | 1366×768 | 240 | 500:01:00 | WLED |
11.1", 1366×768, 6-bit, LVDS, 2D, WLED, Flat, Panel Hot Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight |
| LTD111EWAX | 11.1" | Panel | 1366×768 | WLED | ||
| LTD111EXCK | 11.1" | Panel | 1366×768 | WLED | ||
| LTD111EXCY | 11.1" | Panel | 1366×768 | WLED | ||
| LTD111EWAS | 11.1" | Panel | 1366×768 | 370 | WLED | |
| LTD111EXCA | 11.1" | Panel | 1366×768 | 240 | 500:01:00 | WLED |
| LTD111EXCS | 11.1" | Panel | 1366×768 | WLED | ||
| LTD111EXCX | 11.1" | Panel | 1366×768 | WLED | ||
| LTD111EXCZ | 11.1" | Panel | 1366×768 | WLED | ||
| LTD111EXDS | 11.1" | Panel | 1366×768 | WLED | ||
| LTD111EWZX | 11.1" | Panel | 1366×768 | WLED |
