Product Details:
|
| Panel Type: | LTPS TFT-LCD , Panel | Panel Size: | 11.1 Inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 , WXGA | Active Area: | 245.88×138.24 Mm |
| Display Colors: | 16.7M (8-bit) | Frequency: | 60Hz |
| Response Time: | 8.5 (Typ.)(Tr/Td) | Brightness: | 370 Cd/m² (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

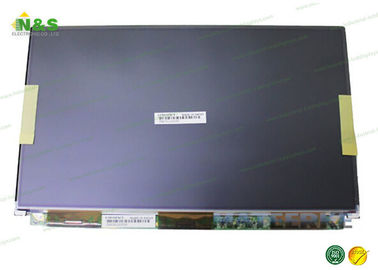

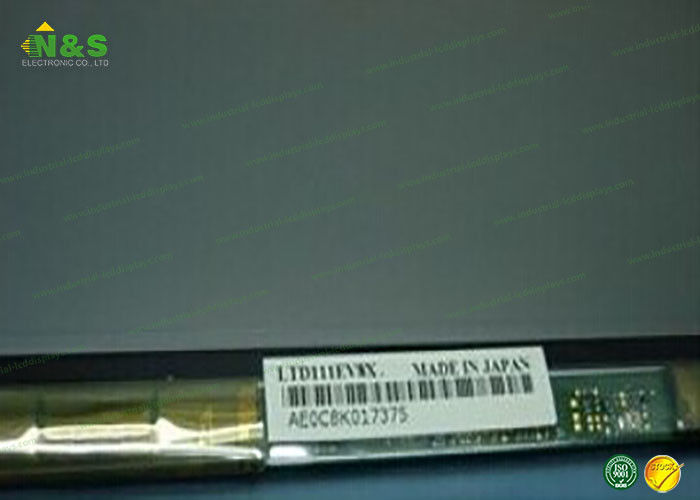

1366*768 Industrial LCD Displays LTD111EV8X 11.1 inch Toshiba Matsushita
Packaging Details:
Aatic bag, Bubble Bag, Foam Box and Carton Box.ntist
Lead time: 1-3 working days for the sample orders.
General Features
| Panel Brand : | Toshiba Matsushita |
| Panel Model : | LTD111EV8X |
| Panel Type : | LTPS TFT-LCD , Panel |
| Panel Size : | 11.1 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 245.88×138.24 mm |
| Outline : | 254.8×159.45 mm |
| Surface : | Antiglare |
| Brightness : | 370 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 8.5 (Typ.)(Tr/Td) |
| Frequency : | 60Hz |
| Lamp Type : | 8S6P WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 30 pins |
| Input Voltage : | 2.5V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
| F04307-06Z | Innolux | 4.3" | 480×800 |
| CG043JN16 | Innolux | 4.3" | 480×800 |
| F04008-01U | Innolux | 4.0" | 480×800 |
| N156BGE-P21 | Innolux | 15.6" | 1366×768 |
| F04801-01Z | Innolux | 4.8" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Mechanical Features
Panel Size : 11.1 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 141 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.060×0.180 mm (H×V)
Pixel Pitch : 0.180×0.180 mm (H×V)
Weight : 135g (Typ.)
Surface : Antiglare
Active Area : 245.88×138.24 mm (H×V)
Outline Dimension : 254.8×159.45 mm (H×V)
Outline Depth : 2.43 mm
Landscape or Portrait : Landscape type
Touch Panel : Without
SHARP LM7M632 Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 370 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Response Time : 8.5 (Typ.)(Tr/Td)
