Product Details:
|
| Panel Size: | 14.0 Inch | Resolution: | 1366(RGB)×768 , WXGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Surface: | Glare (Haze 0%), Hard Coating (3H) |
| Frequency: | 60Hz | Contrast Ratio: | 500:1 (Typ.) |
| Response Time: | 16 (Typ.)(Tr+Td) | Input Voltage: | 3.3V (Typ.) |
| Brightness: | 200 Cd/m² (Typ.) | Shape Style: | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| High Light: | lg display panel,lg lcd display |
||

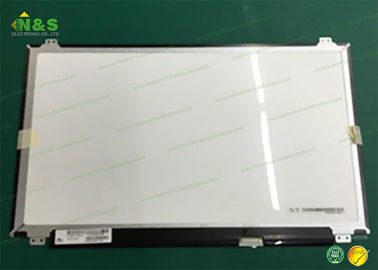

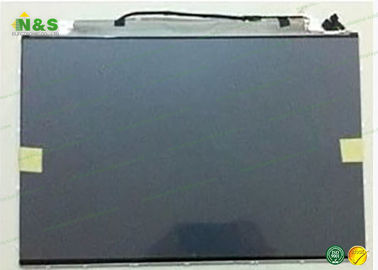

High Resolution 1366*768 LP140WH7-TSA1 with 14.0 inch LG LCD Panel, 200 cd/m²
Why N&S ?
Company information:
About Us:
N&S Technology CO., LTD was established in 2010, Specialize in the LCD Panels sourcing & agency for the international trade.
Our products have passed the certification of ISO9001 Quality Management System, we have a wealth of professional experience and strong sourcing team & international sales team. N&S always walk in the forefront of the industry in the fierce market competition, with unremitting efforts to achieve development!
LG Display LP140WH7-TSA1 General Features
| Panel Brand : | LG Display |
| Panel Model : | LP140WH7-TSA1 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 14.0 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 309.399×173.952 mm |
| Outline : | 326.8×211.55×4.1 mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 45% |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3 strings WLED Without Driver |
| Signal Interface : | eDP (1 Lane) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
LG Display LP140WH7-TSA1 Mechanical Features
Panel Size : 14.0 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 112 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0755×0.2265 mm (H×V)
Pixel Pitch : 0.2265×0.2265 mm (H×V)
Weight : 320g (Max.)
Surface : Glare (Haze 0%), Hard coating (3H)
Active Area : 309.399×173.952 mm (H×V)
Outline Dimension : 326.8×211.55 mm (H×V)
Outline Depth : 3.8/4.1 (Typ./Max.) mm
Shape Style : Flat (PCBA Flat, Depth 3.4~4.0mm)
Holes & Brackets : Face mounting holes (2 pcs) on down slugs
Landscape or Portrait : Landscape type
Touch Panel : Without
LG Display LP140WH7-TSA1 Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 45% NTSC (CIE1931)
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.40/1.60 (Typ./Max.)(13 points)
